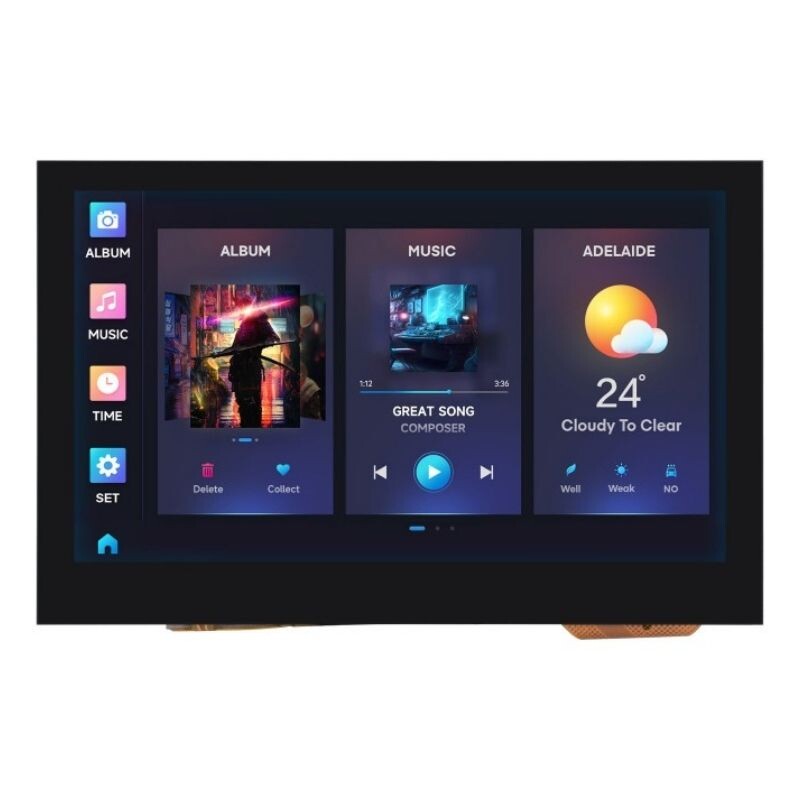

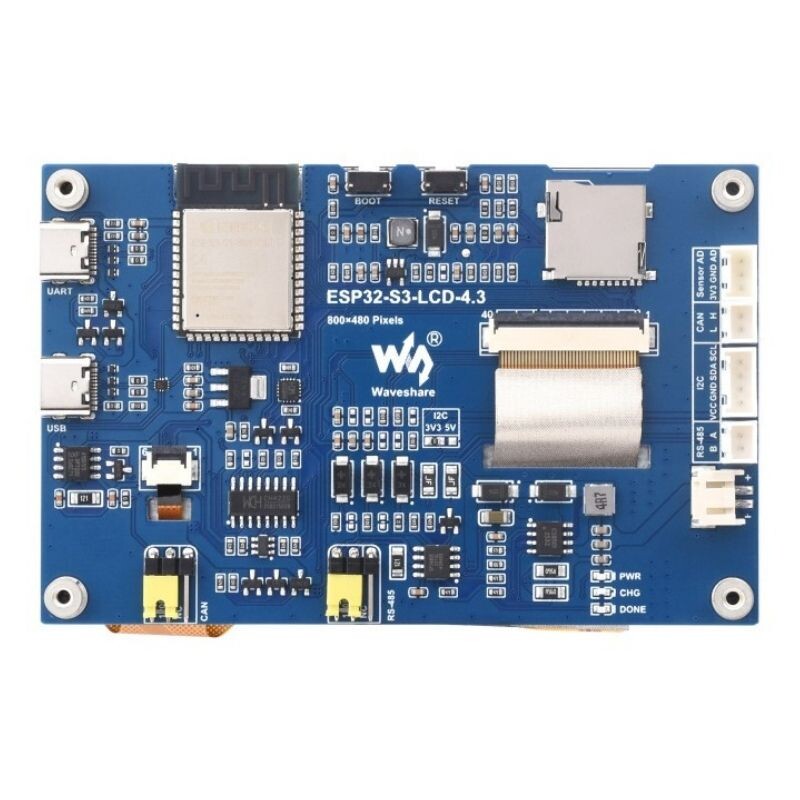

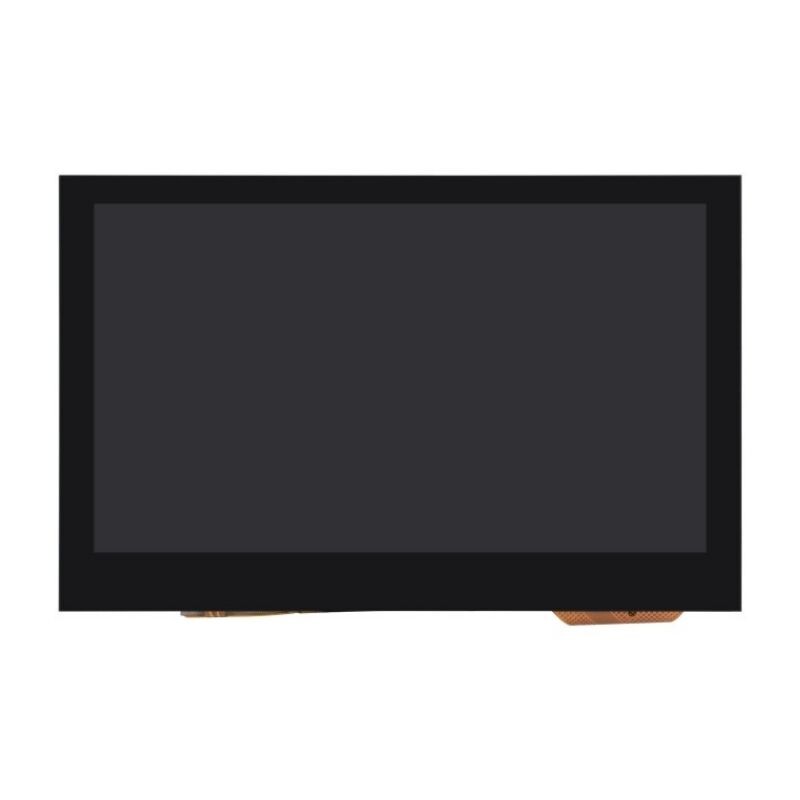

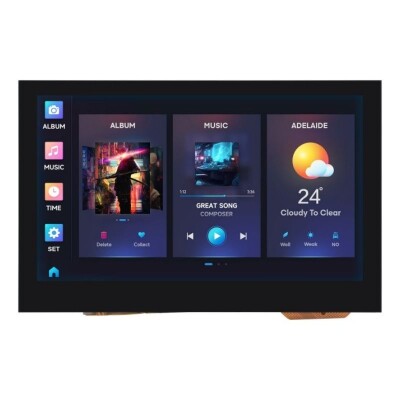

ESP32-S3 4.3 Inch 800x480 Capacitive Touch Screen Development Board

ESP32-S3 4.3 Inch 800x480 Capacitive Touch Screen Development Board

ESP32-S3 4.3 Inch 800x480 Capacitive Touch Screen Development Board is a microcontroller development board with 2.4 GHz WiFi and BLE 5 support, integrates high-capacity Flash and PSRAM. The built-in 4.3 inch capacitive touch screen can run GUI programs such as LVGL smoothly. It is integrated with various peripheral interfaces, suitable for rapid development of HMI and other ESP32-S3 applications.

For detailed information, please visit  wiki page.

Features

• Equipped with Xtensa 32-bit LX7 dual core processor, main frequency up to 240MHz.
• SKU: 25948
• 2.4GHz Wi-Fi with internal antenna (802.11 b/g/n) and Bluetooth 5 (LE).
• Built-in 512KB SRAM and 384KB ROM, built-in 8MB PSRAM and 8MB Flash.
• Built-in 4.3 inch capacitive touch screen, 800×480 resolution, 65K colors.
• I2C interface supports capacitive touch control via 5-point touch with interrupt support.
• Built-in CAN, RS485, I2C interface and TF card slot, integrates full-speed USB port.
• Supports flexible clock, module power supply independent adjustment and other controls to realize low power consumption in different scenarios.
