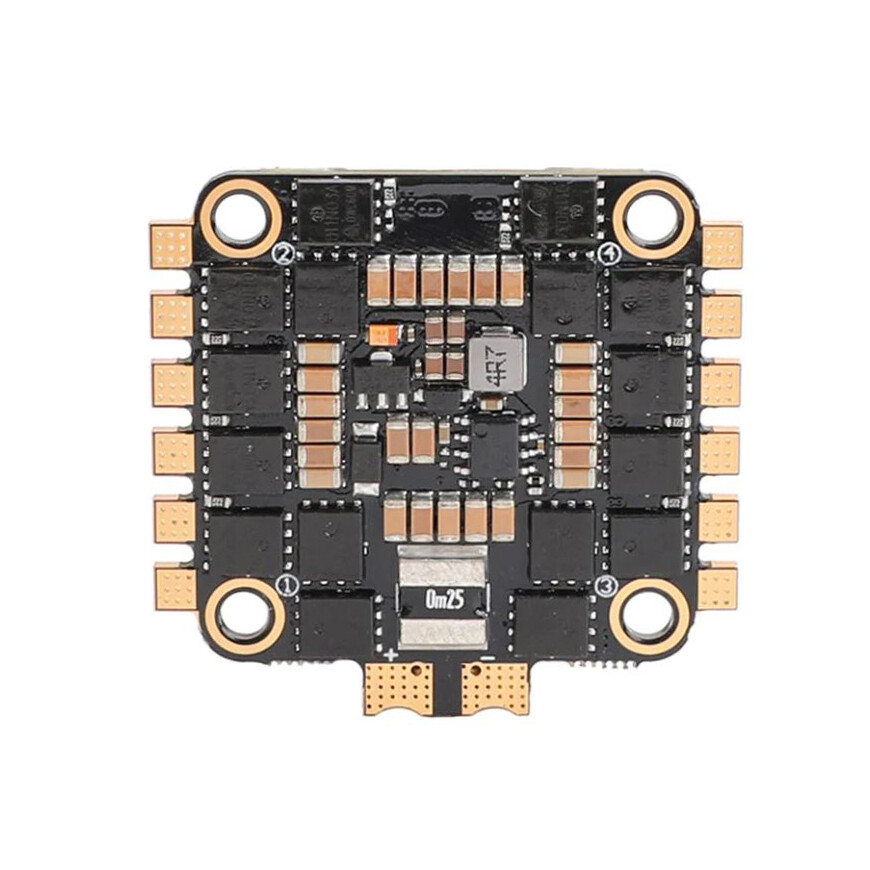

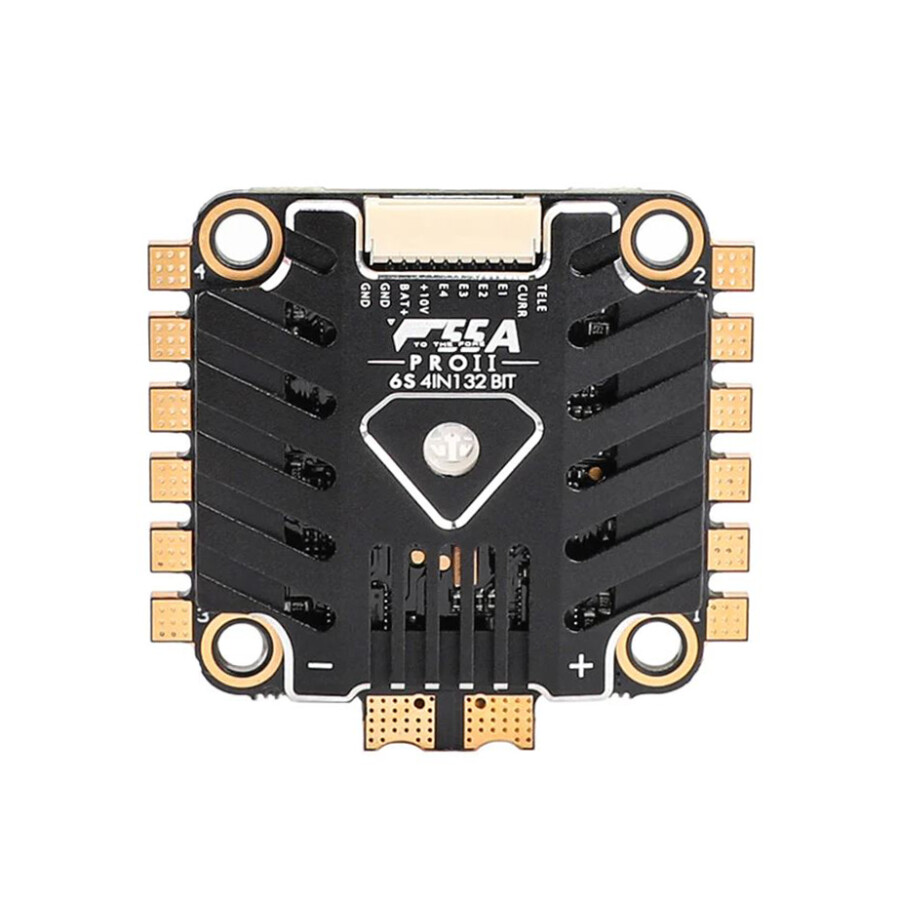

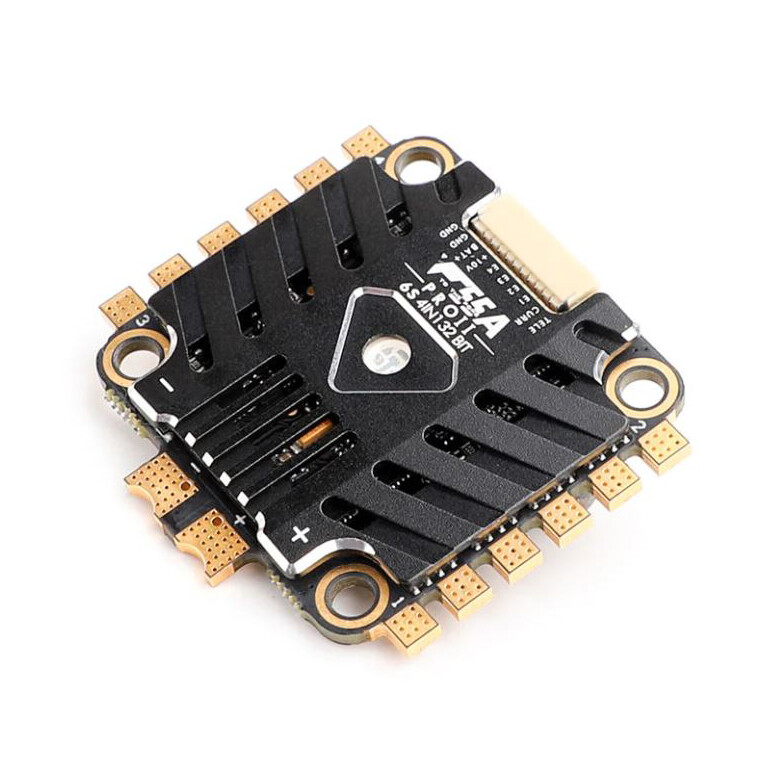

F55A Pro II 55A 3-6s BLHeli32 4-in-1 ESC w/BEC

F55A Pro II 55A 3-6s BLHeli32 4-in-1 ESC w/BEC

T-Motor F55A Pro II MCU G0, It is the ultimate ESC upgrade for competitive racing events. With a lightning-fast 32-bit microprocessor operating at up to 48 MHz, this ESC delivers a serious performance boost. Whether you're pushing your limits with 6 seconds of power or need a sustained 55A current draw, the G0 can handle it all with ease.

G0 features the latest ESC technology for unparalleled control and precision. It has BLHeli_32 firmware. The built-in MOSSFET helps regulate heat and improve safety, so you can focus on your performance without worrying about equipment failure.

Experience the power of damped light mode, which provides regenerative braking and rapid engine deceleration. With adjustable parameters to prevent loss of synchronization, this ESC is designed to perform flawlessly even in the most demanding situations.

G0 supports at least Dshot 1200, as well as the usual 1-2 ms pulse width input Supports Oneshot 25, Oneshot42, Multishot and Dshot signal at any rate up to . The built-in beacon function helps you easily find lost ships, while the 10V BEC FC powers your accessories such as VTx, Camera and LED lights.

Compact and lightweight, the G0 is easy to install and It fits seamlessly into your existing setup. Its durable design and high-quality construction ensure it can withstand even the most intense racing conditions. Take your racing game to the next level with the T-Motor F55A Pro II MCU G0 ESC. With 55A continuous current and 75A inrush current, it is the perfect upgrade for serious racers. Experience the ultimate in ESC performance!

Features

• High-performance 32-bit microprocessor with an operating frequency of up to 48 MHz for an excellent performance.
• BLHeli_32 firmware, basic BLHeli and BLHeli Following -S is the third generation BLHeli.
• All codes use damped light mode. Damped light performs regenerative braking, causing very rapid motor lag, and naturally also active freewheeling.
• The code supports features that prevent loss of synchronization. Although the default settings work perfectly in normal operating environments, there are adjustable parameters that can make the code work well even in the most demanding situations.
• The code includes Oneshotl 25 (125-250us), as well as the normal 1-2 ms pulse width input. Supports Oneshot42 (41.7-83.3us) and Multishot (5-25us).
• Dshot signal is supported at any rate up to at least Dshotl 200. The input signal is automatically detected by the ESC at power-up.
• The code also supports a beacon function where the ESC will start beeping after a certain zero decay time. This can be very useful for finding lost crafts.
• Built-in 10V BEC, FC, VTx, Camera and LED lights etc. It provides power to different accessories such as.

Technical Specifications

• Continuous current: 4*55A
• BLHeli_32 32bit
• Burst current: 4*75A
• BEC Output: 10V @2.0A
• Weight: 17.5 g (Including Heatsink)
• Support DSHOT150/300/600/1200
• Lipo: 3-6s
• Size: 45x41x7.3mm
• Mounting Hole: 30.5* 30.5 mm
