FC-33 Encoder Disk and Speed Sensor Pair HC-020K

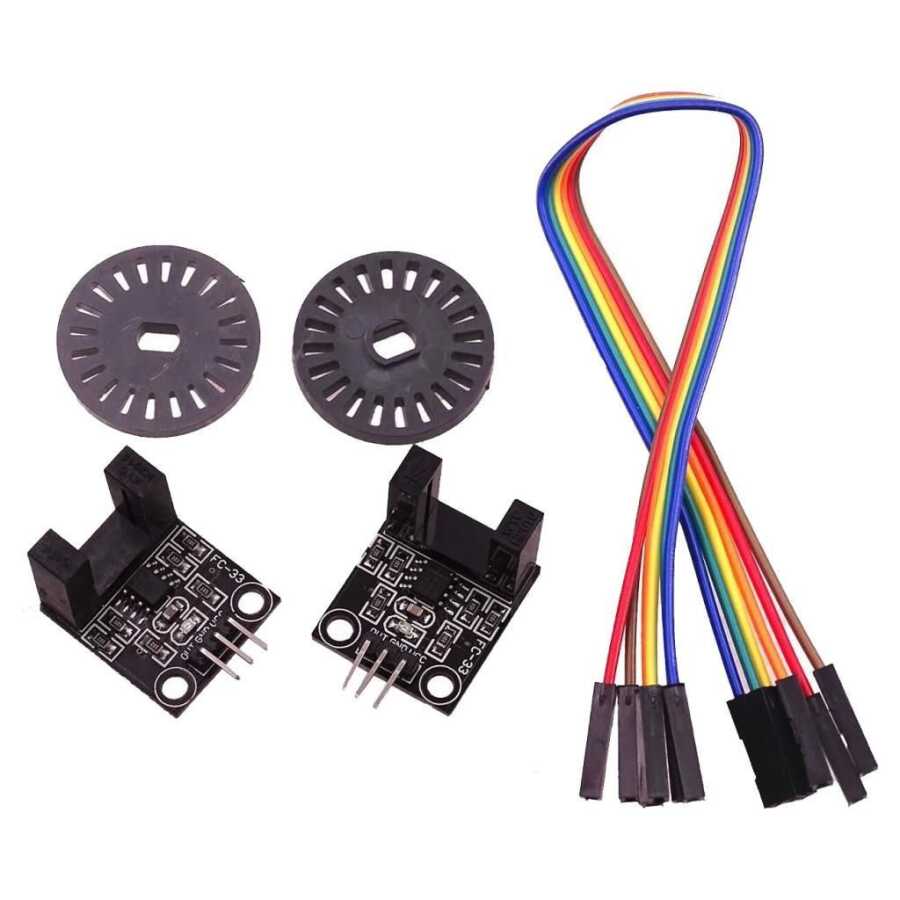

HC-020K Speed Measurement Module Pair high resolution, short response time measurement It is a module, it can measure the motor speed with the encoder disk. The product includes two encoder disks and a photoelectric speed sensor. When measurements are made by connecting sensors to two wheels on the same plane, data can be compared and more precise results can be obtained.
Technical Specifications:
- Operating voltage: 4 .5V - 5.5 V
- Conduction tube pressure drop: Vf = 1.6 V
- Conduction tube current: 20 mA
- Signal output: A, B two-way; TTL level
- Distinguishing sensitivity: 0.01 mm
- Measurement frequency, 100 KHZ
- Encoder diameter: 24 mm
- Encoder D type hole diameter: 4 mm
- Encoder resolution: 20 lines
