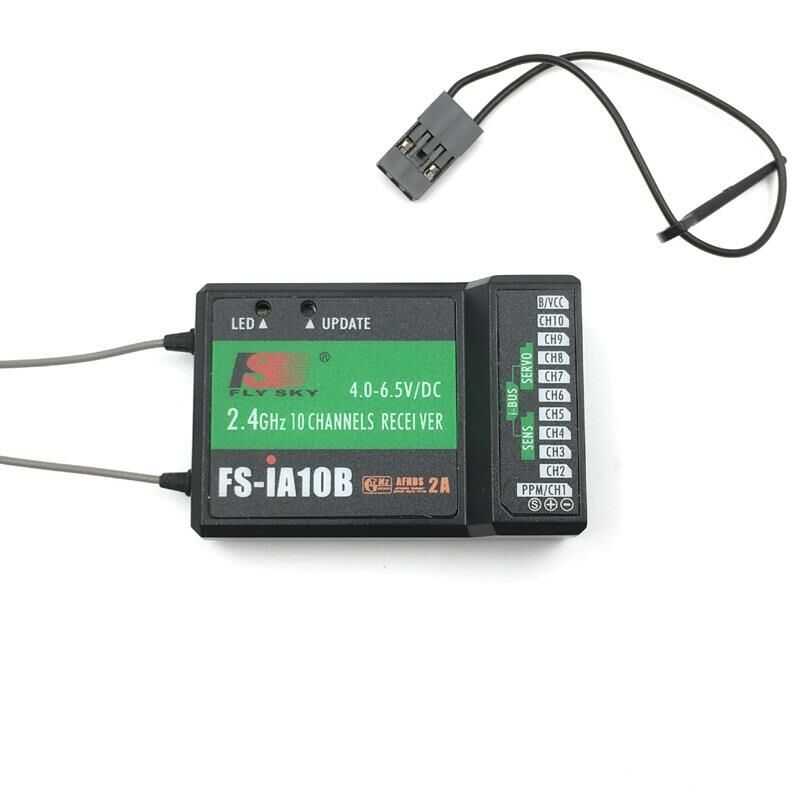

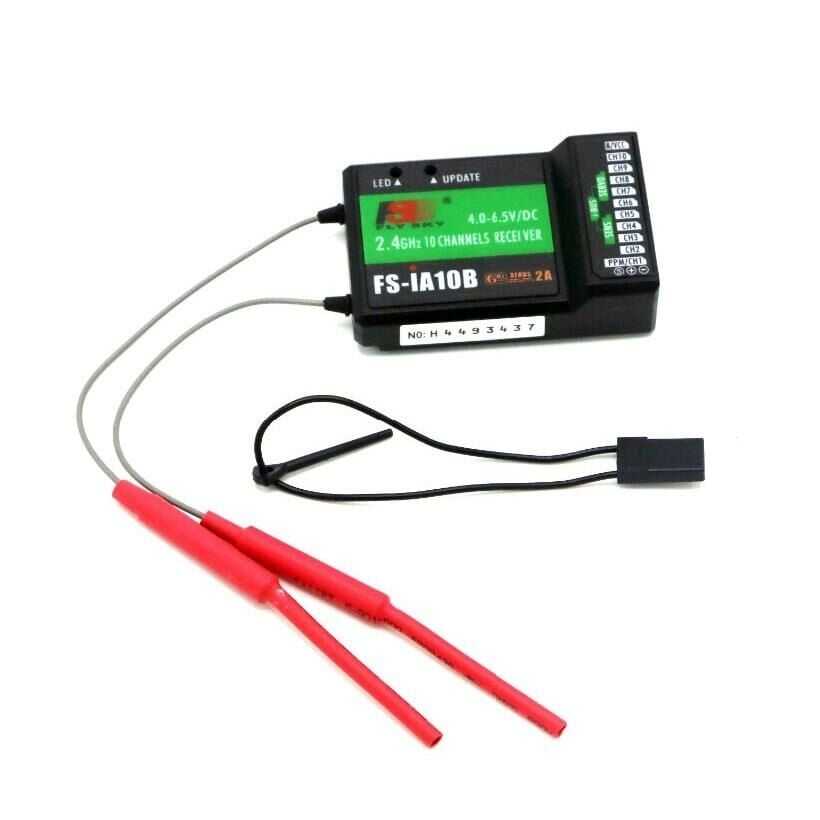

Flysky FS-İA10B 2.4Ghz 10 Channel Receiver



Based on the iA6B receiver, the FS-IA10B receiver provides a 10-channel version. Like the FS-iA6B, the iA10B is capable of iBUS, SBUS, PPM and PWM for advanced control.

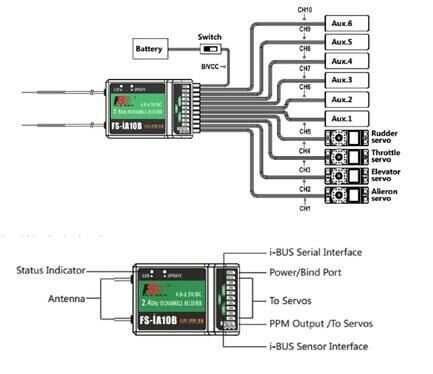

The advantage of PPM / SBUS over traditional PWM channels is that each PWM This is because you only use one signal cable instead of one for the channel - so wiring for PPM-compatible flight controllers like the Naze32 is greatly simplified. Plus, with optional telemetry sensors, you can increase the receiver's compatibility to monitor things like flight battery voltage and even engine RPM.

This full 10-channel receiver works for most models and It is considered “full range” so it can handle larger models as well as smaller models. Dual antennas give the FS-iA10B unparalleled reception (reported at over 1km) and interference rejection. For best results, Make sure the antennas are set at a 90 degree angle from each other.

Specifications

• Reliable, interference-free 2.4GHz AFHDS 2A signal operation
• Compact, lightweight design
• Dual antennas for reliable, interference-free operation
• Connection ports for use with optional telemetry sensors
• Channel: 10
• Antenna Length: 26mm * 2 (dual antenna)
• Input Power: 4.0-6.5V DC
• Weight: 19.3g
• Dimension: 51mm * 34mm * 15mm
• Color black
• i-Bus Interface: Yes
• Data Acquisition Interface: Yes
• Model Type: Airplane / Glider / Helicopter

  Compatible Radios

  • Flysky i4
  • Flysky / Turnigy i6
  • Flysky / Turnigy i10
  • Flysky FS-i10
  • FS-GT2E
  • FS-GT2E
  • FS-GT2G
