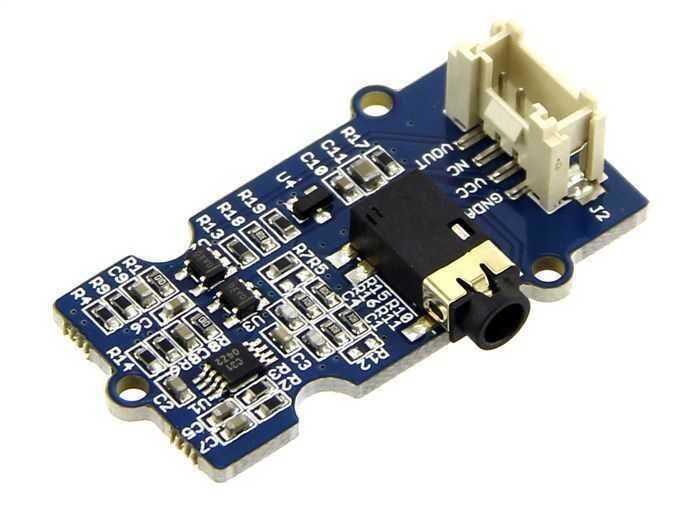

Emg Sensor is a module used to examine the movements of nerves and muscles in the body. Electrical signals generated in line with muscle movements can be read with Arduino or various microcontrollers.
This sensor is project-based and cannot be used in medical applications.
In standby state, a 1.5v voltage is supplied. gives output. It gives an analog output signal up to 3.3v according to muscle movements.
EMG Sensor Usage:
You can download the sample code from the link here. After the demo code is installed, it may take 5 seconds to open. You need to stand still during this period. Then, when you move the muscle group to which the sensor is connected, the sensor will start to give an analog output. You can observe your movements by integrating an LED bar into your system, as in the image below.
To see all our medical sensor types
- Grove Compatible
- 3.5mm Connector

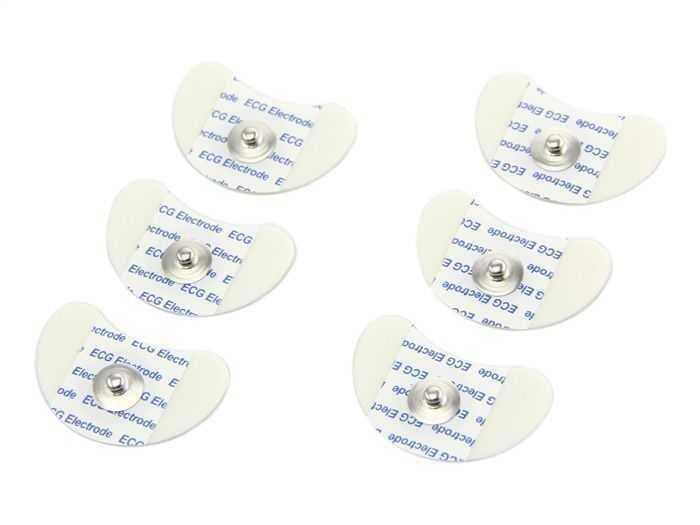

- Disposable surface electrodes
- Input voltage: 3.3V-5V

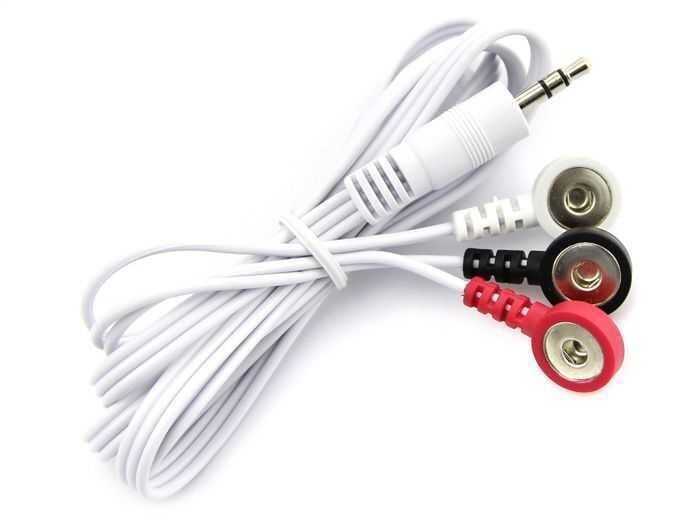

- 1000mm Cable Ends
- No additional power supply
