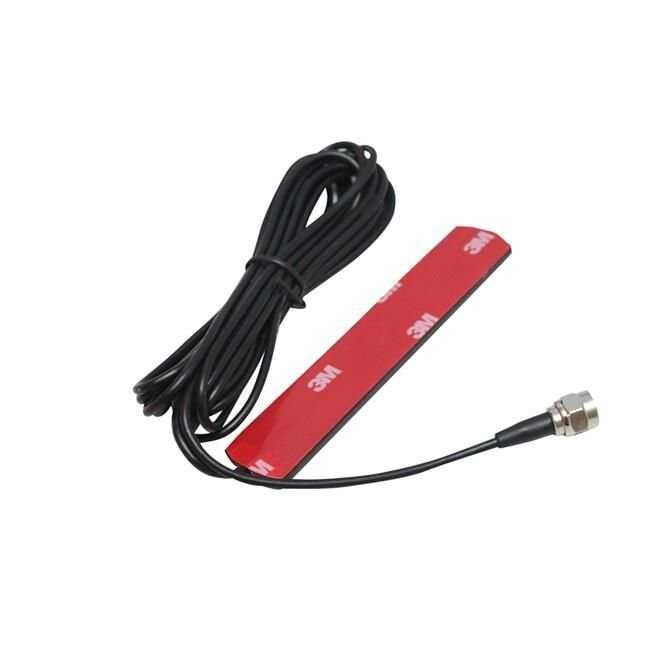

GSM/GPRS Antenna - SMA connector 900Mhz/1800Mhz
This antenna allows you to connect your cellular module to the outside world. It operates on four frequencies. Comes with 3M adhesive backing for mounting. It has a standard male SMA lead.
This antenna is compatible with SIM900A and SIM808.
Technical Specifications
-
Quad-band: 850/900/1800 / 1900MHz and 2.4GHz
-
GSM / GPRS, CDMA / 1X, TDMA / AMPs, CDPD, 2-Way pager Re- Flex
-
Frequency range: 824 ~ 960 MHz / 1710 ~ 1990 MHz
-
Impedance: 50 Ohm nominal
-
VSWR: <2.0:1
-
Gain: 3.5dBi
-
Polarization: Vertical
-
Wave: Half Wave Dipole
-
Dimension: 115x22x4mm
-
Connector SMA (Male) standard
-
Cable: RG174
-
Cable length: 3m
-
On-Mold Body: ABS Black
-
Mounting: Adhesive back
-
Operating Temperature: - 40 - 85 C
