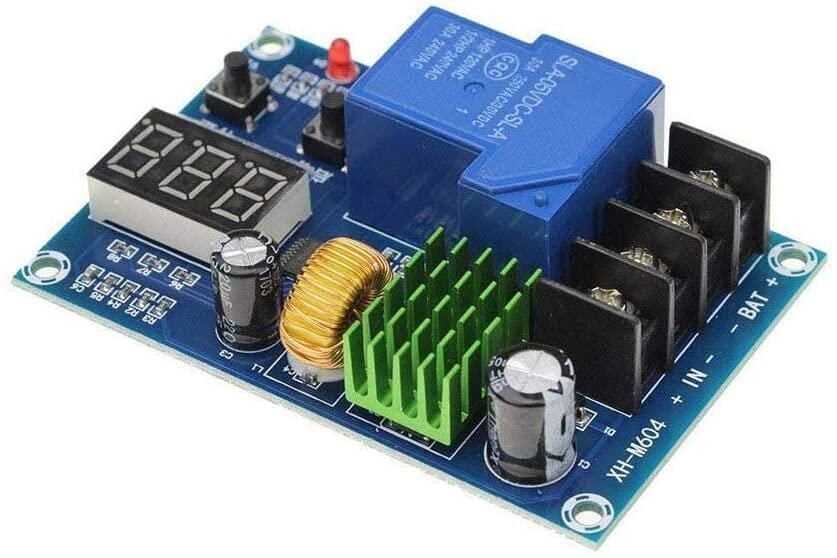

HCW-M604 6-60V Lithium Battery - Battery Charge Control Circuit

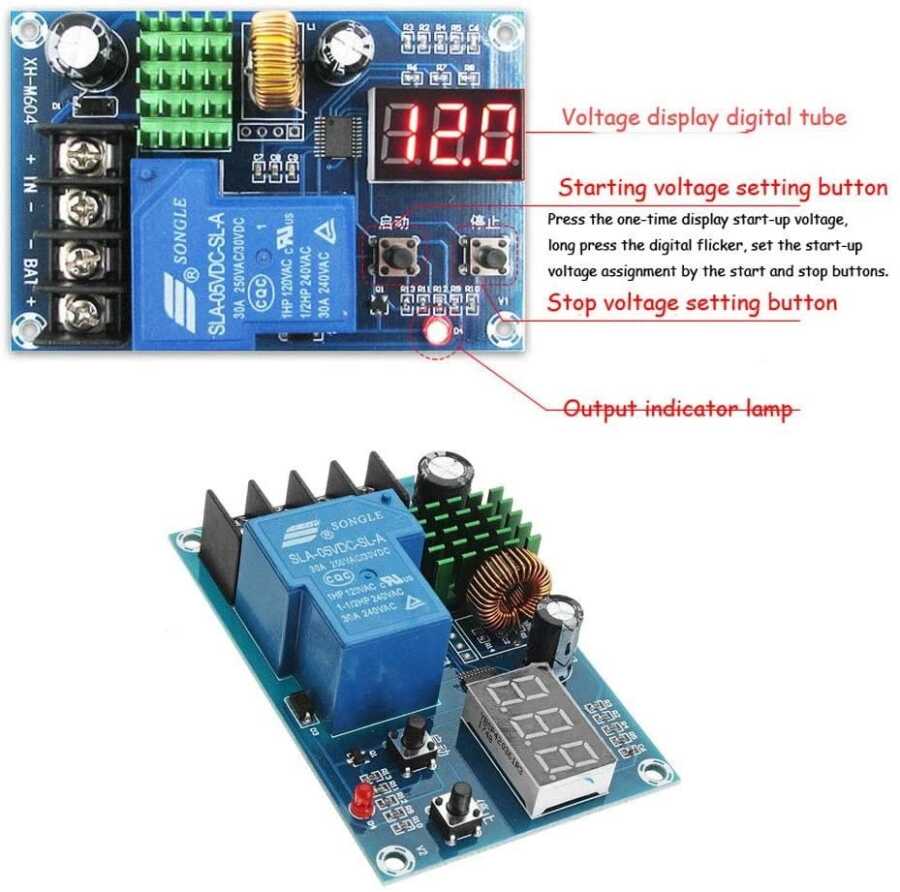

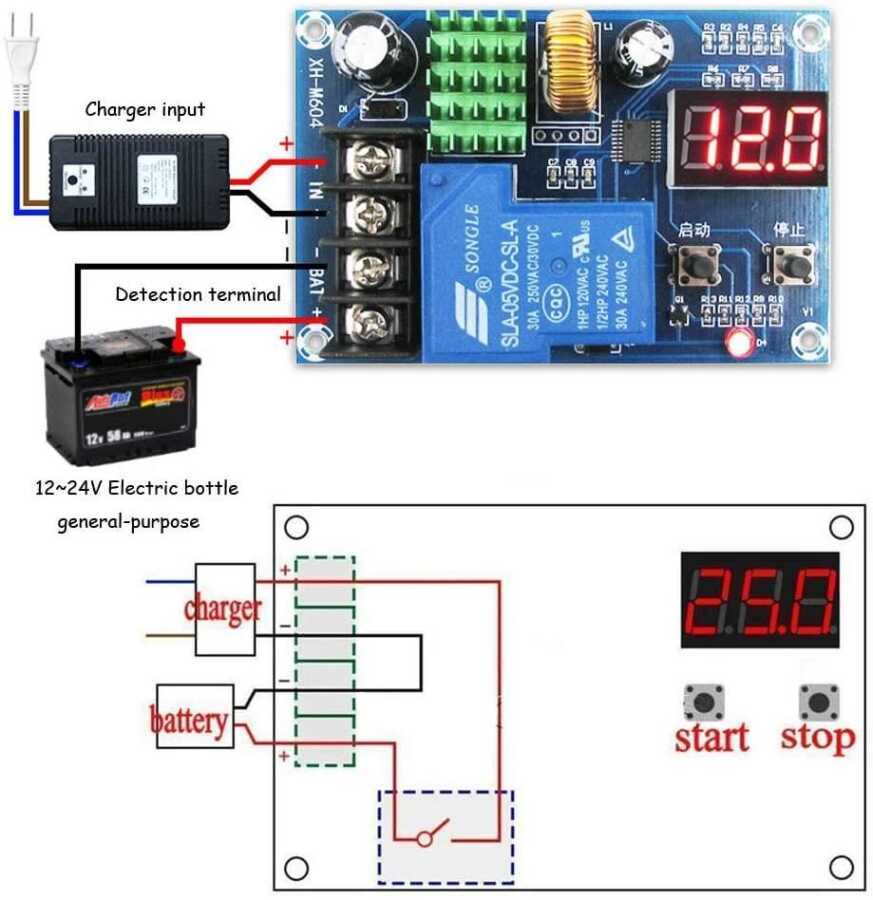

HCW-M604 Charging circuit is used to charge Lithium rechargeable batteries in the 6-60V range. It is a protective circuit. It charges your battery between the upper and lower voltage values entered by pressing and holding the RUN+ and STOP- buttons on it. Products in the 6-60V range can be charged with this product.
Technical Specifications:
- Input Voltage: DC 6-60V
- Rated Current: Max 30A
- Constant Current: 10A
- Tolerance: 0.1V
- Output Range: 6-60V
- Product Weight: 40 gr.
