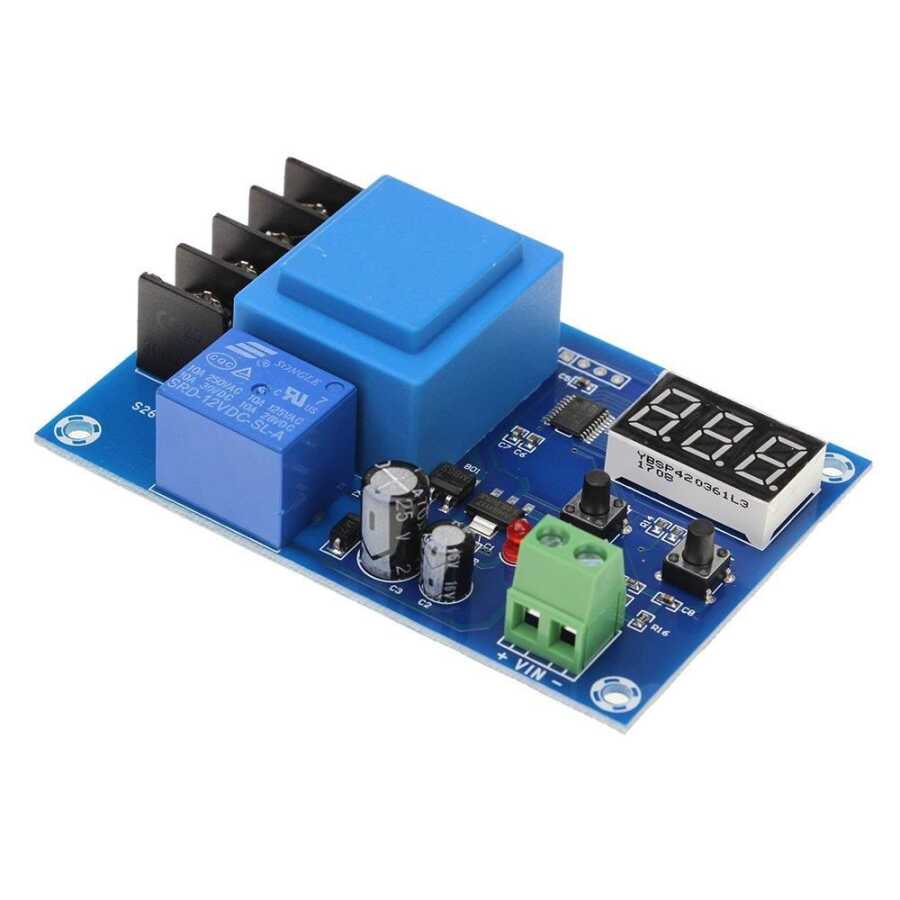

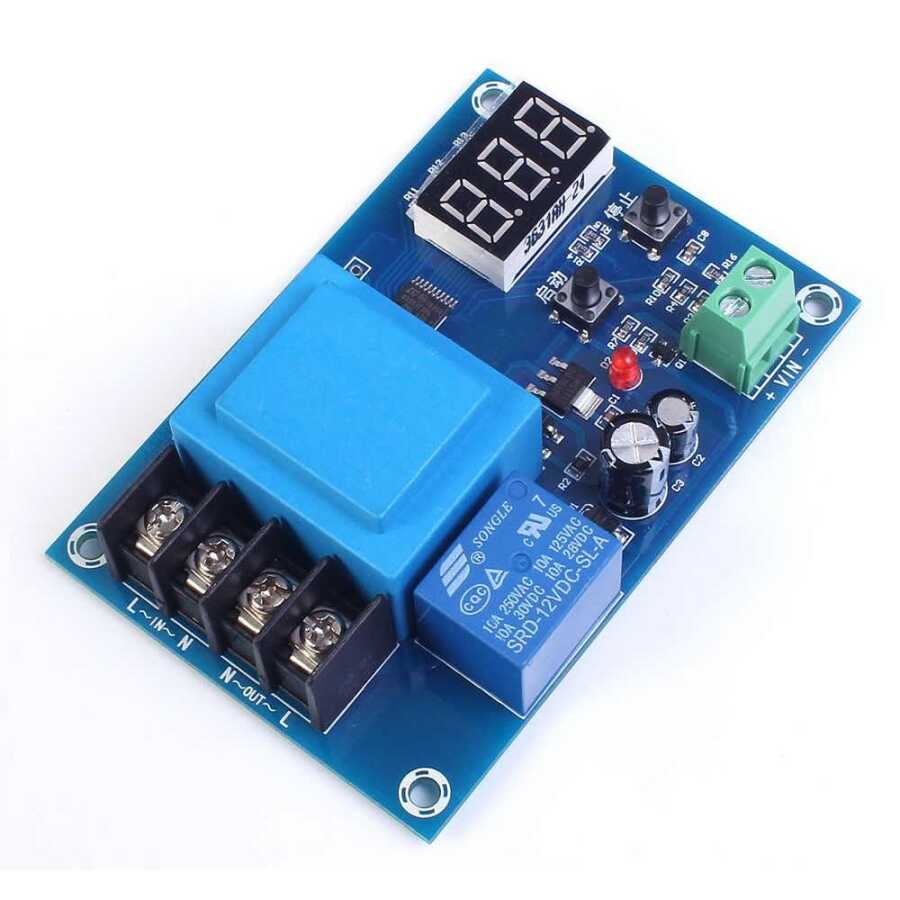

HCW-M633 3.7-120V Lithium Battery - Battery Charge Control Circuit

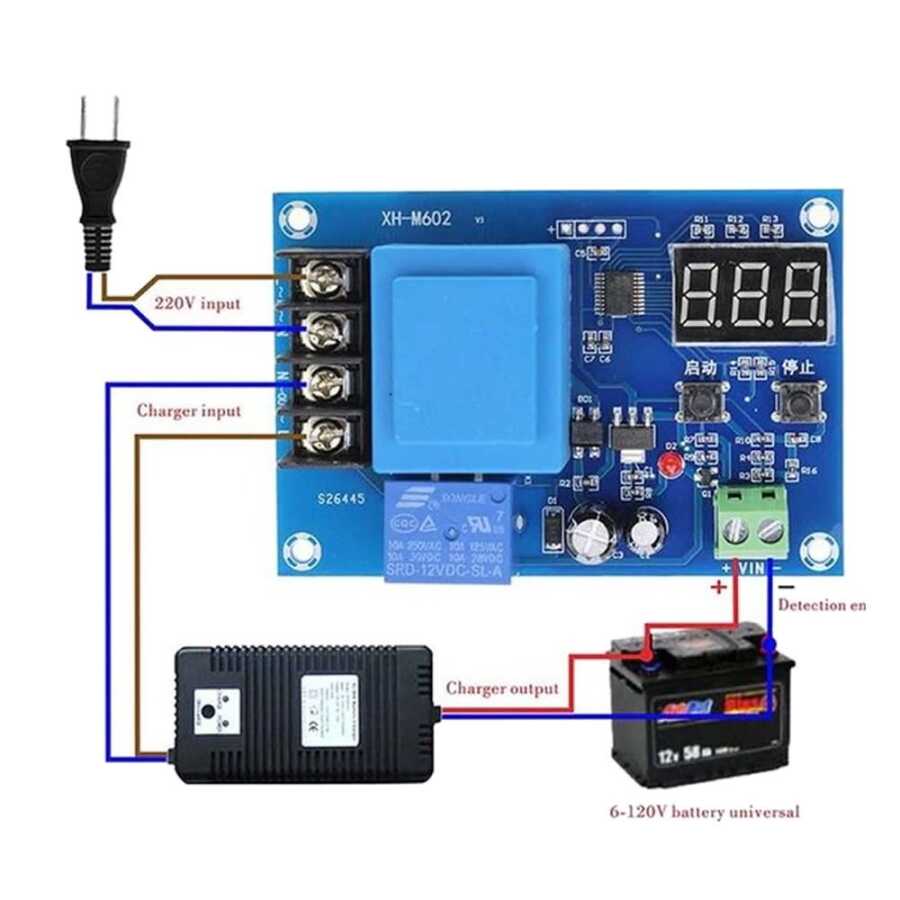

XH-M602 Charging circuit, Lithium charge in the range of 3.7-120V It is a protective circuit where you can charge rechargeable batteries and accumulators. Since this range covers all batteries, it can charge all lithium batteries. It charges your battery between the upper and lower voltage values entered by pressing and holding the RUN+ and STOP- buttons on it. The product input voltage is AC 220V. Thanks to the circuit on it, the relay is controlled with 220v. In the meantime, an external ac dc converter must be used. Not included in the product content.
Technical Specifications:
- Input voltage: AC 220 V
- Display sensitivity: 0.1 v
- Control sensitivity: 0.1 v
- Output type: output switch
- Voltage error: + 0.1 v / -0.1 v
- Scope of application: 3.7V ~ 120v all lithium battery
- weight: 110g
- Size: 86*58*24 (mm)
