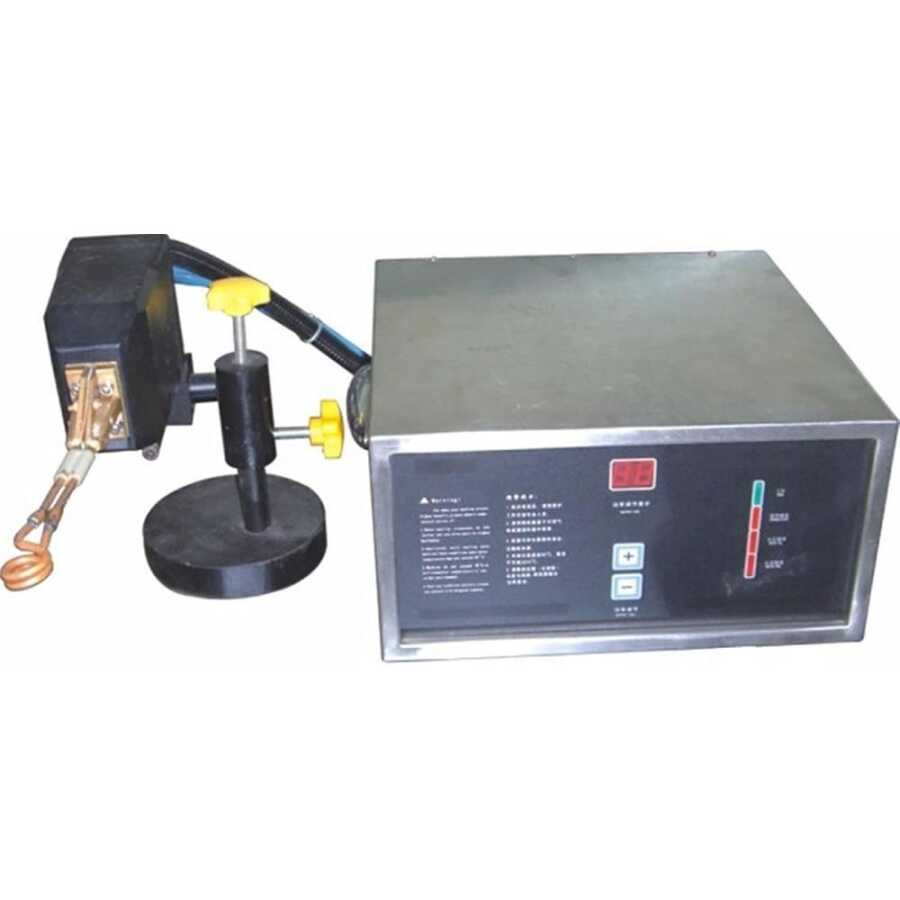

High Frequency 3 KW Induction Heating Machine



High frequency induction heating machine with 3KW power. This water-cooled product can reach high power values ​​thanks to its cooling system and can perform the desired heating process successfully.



This product, which works with AC220V, can be powered by the buttons on the front. It is possible to increase and decrease. At the same time, this power change can be monitored on the screen on the product.



*Connect with AC 220V input voltage and ensure ground connection.

*Install the cooling system properly, according to the cooling water installation drawing.

*Turn on the air switch on the rear panel. If the electrical system is affected, the machine enters a delayed start phase. After four seconds the machine starts and buzzes for a second. Then adjust the power according to the heating requirements, press the foot pedal and start working.

*After finishing working, turn off the power switch first and then turn off the cooling water.



*Induction coil length is from 80mm to 120mm, 100mm is best.

*The best diameter of copper tube is 9mm, normally 6mm mm to 13 mm.

*The distance between two parallel copper pipes is 7 mm.

*The distance between two copper pipes is as small as possible, but they should never touch each other to avoid a short circuit. .
