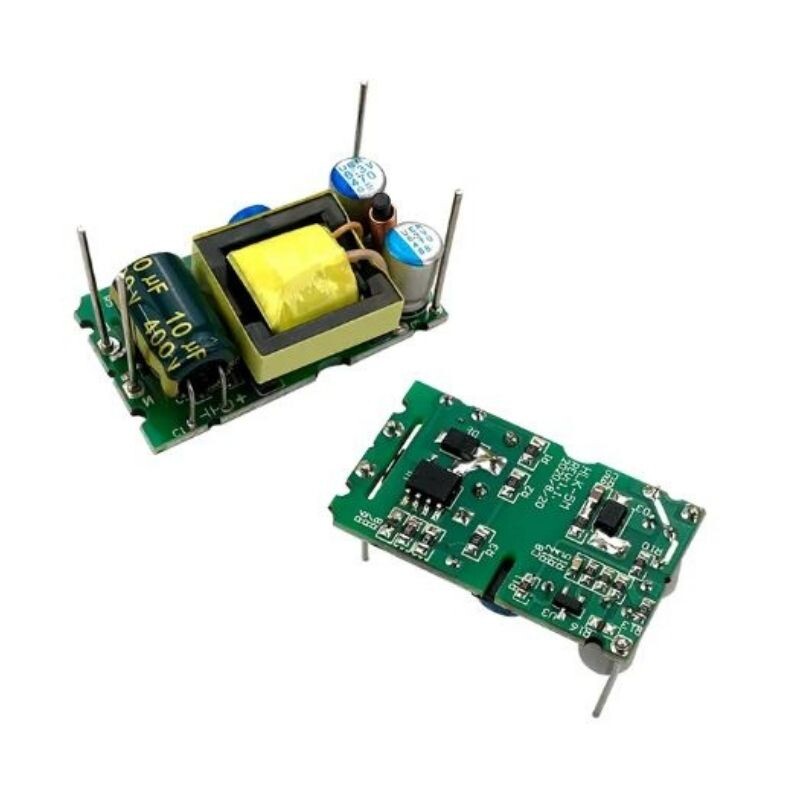

HLK-10M24L AC 220V - DC 24V 10W Open Type Voltage Converter
Hi-Link Ac-Dc open type voltage converter is used to convert the mains input voltage of 220VAC into dc voltage. It is a voltage converter used. This type of voltage converters are used when we want to convert or reduce the AC input voltage.
The input and output voltages of the product are stated in the product name and technical specifications. Please select the product by checking the input and output voltage values.
There is short circuit protection. It has a long-lasting design. MTBF≥ 100,000H.
Technical Specifications
- Input Voltage: 90 - 265 VAC
- Output Current: 0.42 A
- Output Voltage: 24 VDC
- Output Power: 10W
- Isolation Voltage : 3000V
- Short Circuit Protection
- Operating Temperature Range: -25° ~ +60°C
- Dimension: 44.5 X 25.4 X 20mm
Typical Circuit Connection
.png)
