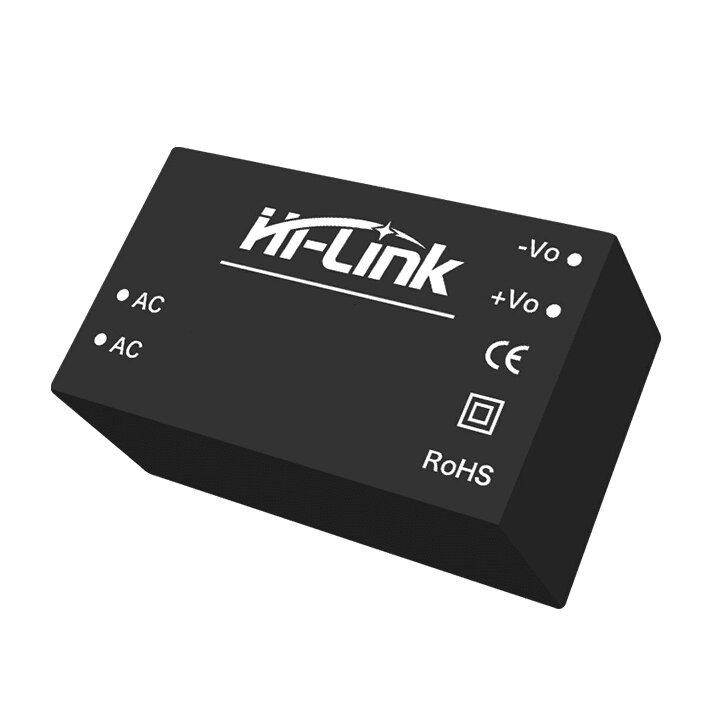

HLK-30M09 AC 220V - DC 9V 30W PCB Type Voltage Converter
Hi-Link Ac-Dc voltage converter is a device used to convert the mains input voltage of 220VAC to dc voltage. It is a voltage converter. This type of voltage converters are used when we want to convert or reduce the AC input voltage.
The input and output voltages of the product are stated in the product name and technical specifications. Please select the product by checking the input and output voltage values.
There is short circuit protection. It has a long-lasting design. MTBF≥ 100,000H.
Technical Specifications
- Input Voltage: 86 - 265VAC
- Output Current: 3.3 A
- Output Voltage: 9 VDC
- Output Power: 30W
- Isolation Voltage: 3000V
- Short Circuit Protection
- Operating Temperature Range: -25° ~ +60°C
- Dimension: 56 X 32 X 22.5mm
Typical Circuit Connection
Datasheet
