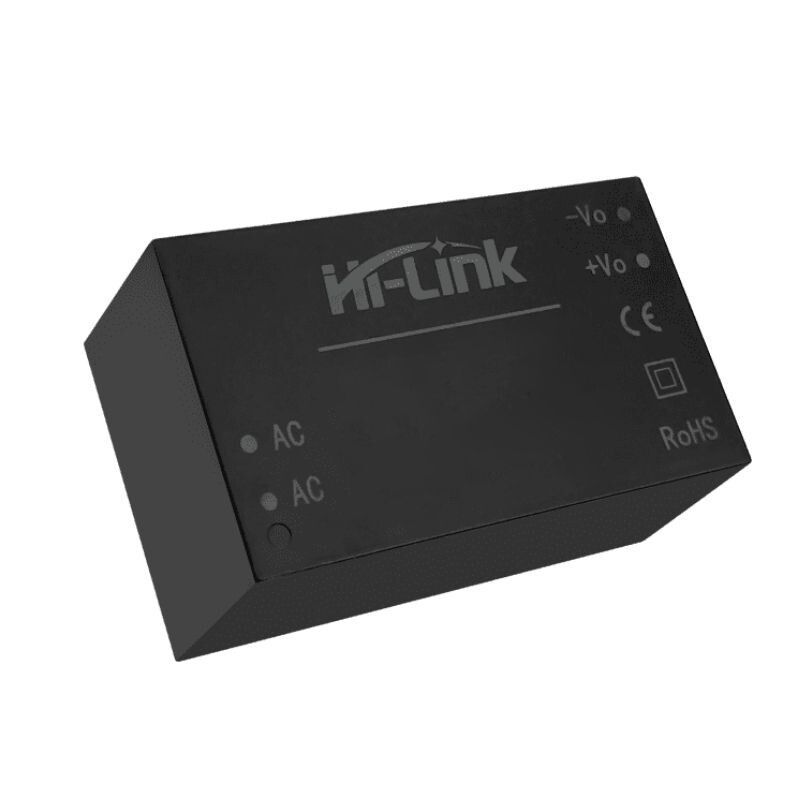

HLK-40M01 AC 220V - DC 5/9/12V 40W PCB Type Voltage Converter
Hi-Link Ac-Dc voltage converter converts 220VAC mains input voltage to dc voltage It is a voltage converter used for conversion. This type of voltage converters are used when we want to convert or reduce the AC input voltage.
The input and output voltages of the product are stated in the product name and technical specifications. Please select the product by checking the input and output voltage values.
There is short circuit protection. It has a long-lasting design. MTBF≥ 100,000H.
Technical Specifications
- Input Voltage: 86 - 265VAC
- Output Current: 3.3 A
- Output Voltage: 5/9/12V VDC
- Output Power: 40W
- Isolation Voltage: 3000V
- Short Circuit Protection
- Operating Temperature Range: -25° ~ +60°C
- Dimension: 56 X 32 X 22.5mm
Typical Circuit Connection
.png)
