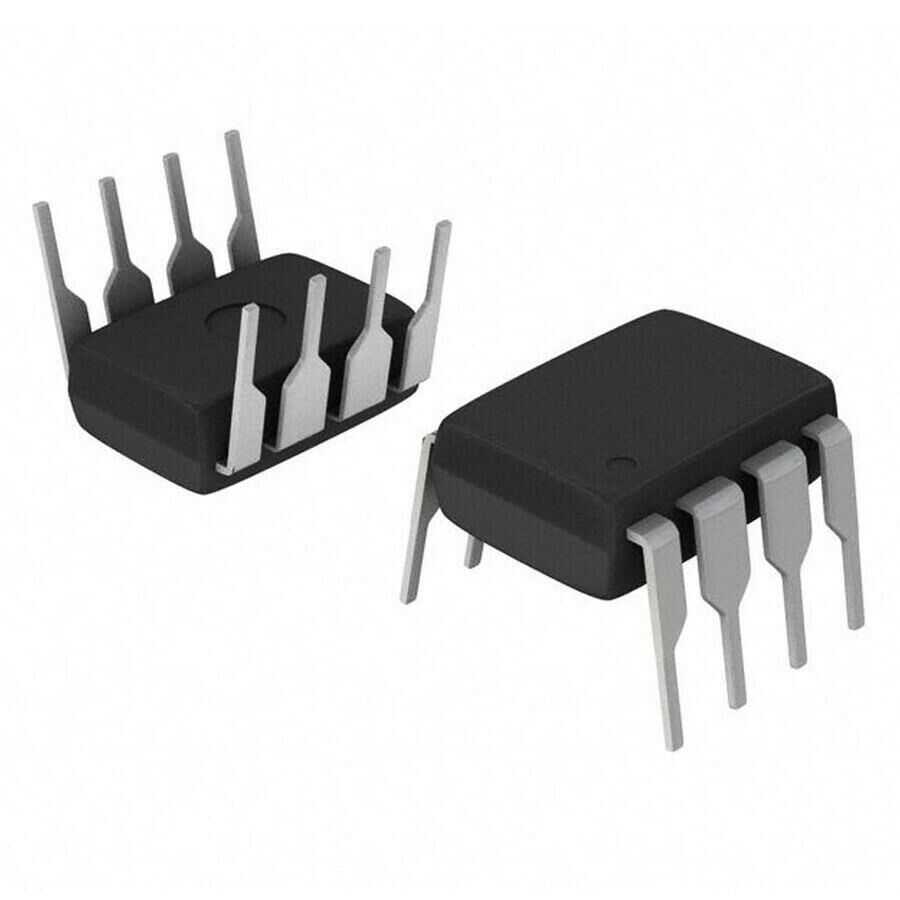

IR2121 DIP-8 Mosfet Driver IC

IR2121 is a high-speed powerful MOSFET and IGBT driver with overcurrent limiting protection circuit. Latch-insensitive CMOS technology provides ruggedized monolithic structure. Logic inputs are compatible with standard CMOS or LSTTL outputs up to 2.5V logic. The output driver features a high pulse current buffer stage designed for minimal crossover conduction. The protection circuit detects overcurrent in the driven power transistor and limits the gate drive voltage.

Series	IR2121
Supply Voltage	12V - 18V
VCSth	230 mV
Operating Temperature	-40°C - 150°C
IO+/-	1A / 2A
Number of Pins	8 Pin
Package Type	DIP-8
