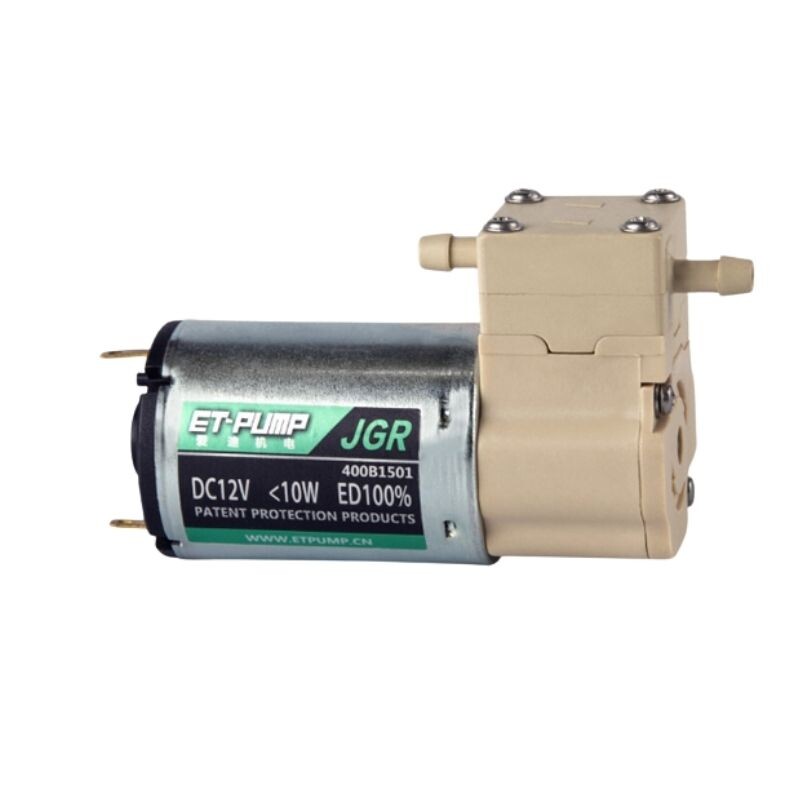

JGR-B 400B1501 12V 10W Diaphragm Water Pump

JGR-B 400B1501 12V 10W Diaphragm Water Pump

JGR-B 400B1501 12V 10W Diaphragm Water Pump is a high pressure, 95'C high temperature resistance diaphragm water pump. There is no liquid leakage. Only suitable for self-priming without back pressure and short-term dry pumping only when water supply is started.

Features

• Model: JGR
• Voltage: 12VDC
• Power: 10W
• Maximum pressure: ≥12Bar
• Vacuum: ≤-0.30Bar
• Noise: (1M) 58dB
• Insulation Level: Class B
• Lifespan: 20000 times
• Weight: 130g
• Dimensions:68.6x41.3x29mm

Flow Speed ​​Table
