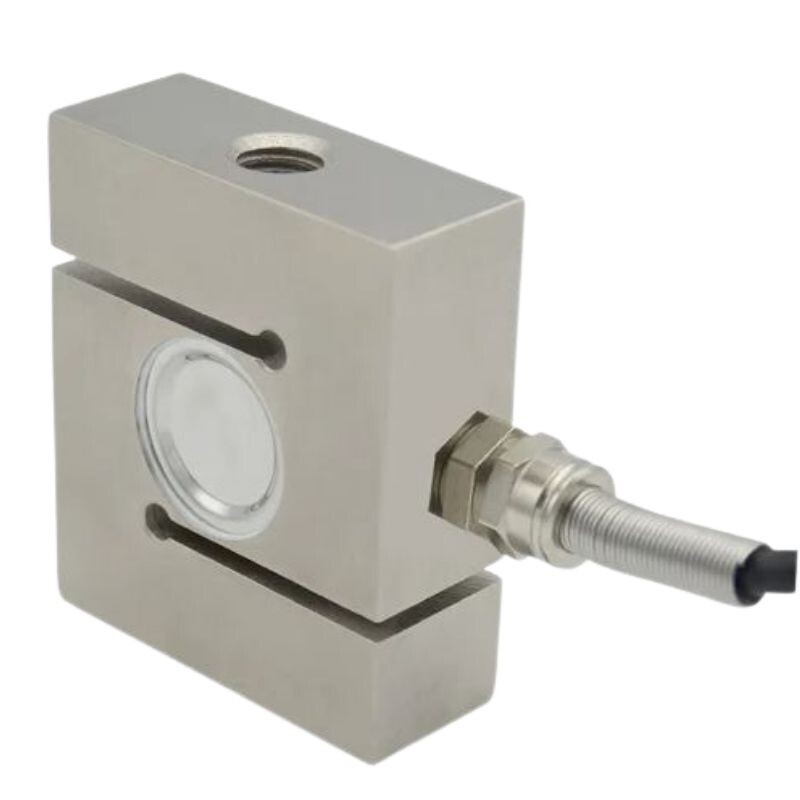

JLBS S Type Weight Sensor 1-100KG
JLBS S Type Weight Sensor is a weight sensor with a capacity of 1-100KG. It is protected against corrosion and water. It works with high precision and is easy to connect.
Features
- Model: JLBS
- Measurable Weight: 1-100kg
- Sensitivity: 2.0 ± 0.1mv/V
- Input Impedance: 385 ± 35 ohms
- Output Impedance: 350 ± 3 ohms
- Insulation Resistance: >2000mohm
- Excitation Voltage: 5 ~¨12V
- Size: 66x50x19mm
- Cable Length: Approx. 2m
Links
- Red: Sense + (Input +)
- Black: Sense - (Input -)
- Green: Signal + (Output +)
- White: Signal - (Output -)
