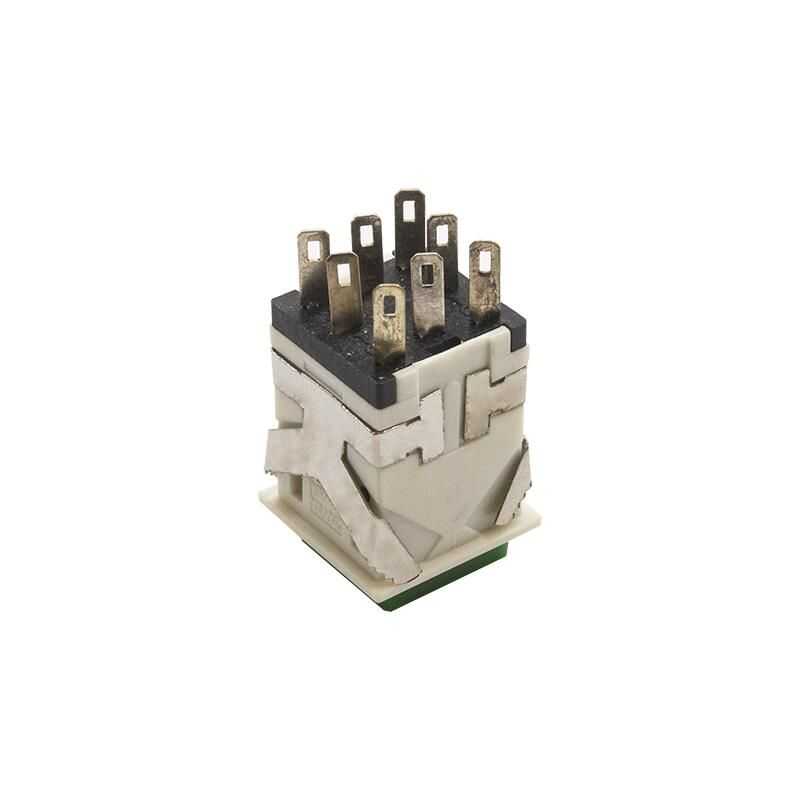

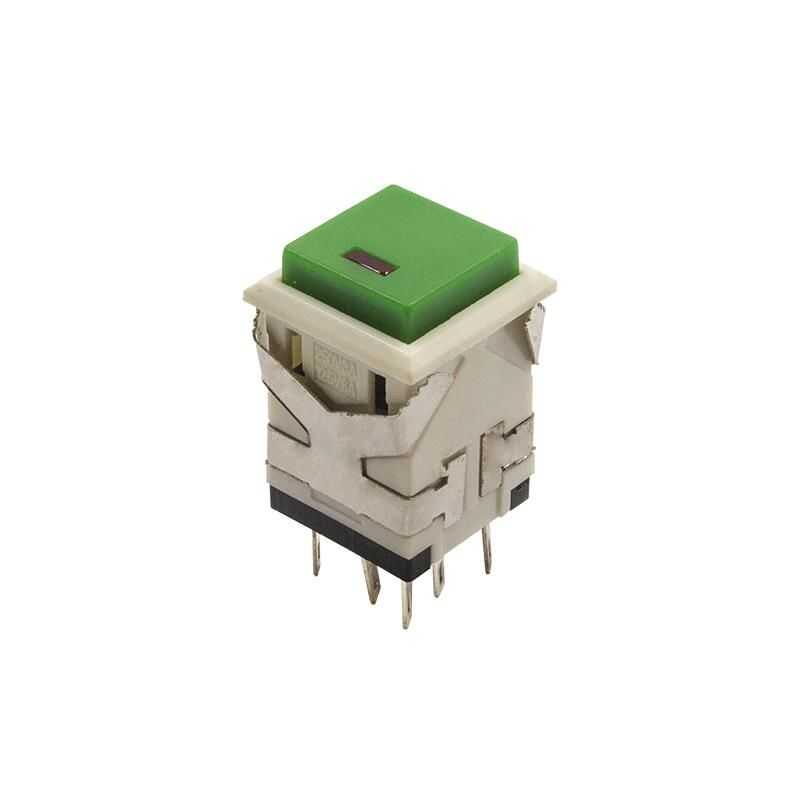

KD2-21 19mm Illuminated Spring Push Button - Green
As long as the Spring Button is pressed, the signal will be triggered, when you stop pressing the button, the signal will be cut off. It is an ideal instant push button for your electronic applications.
Type: Spring On-Off
Color: Green

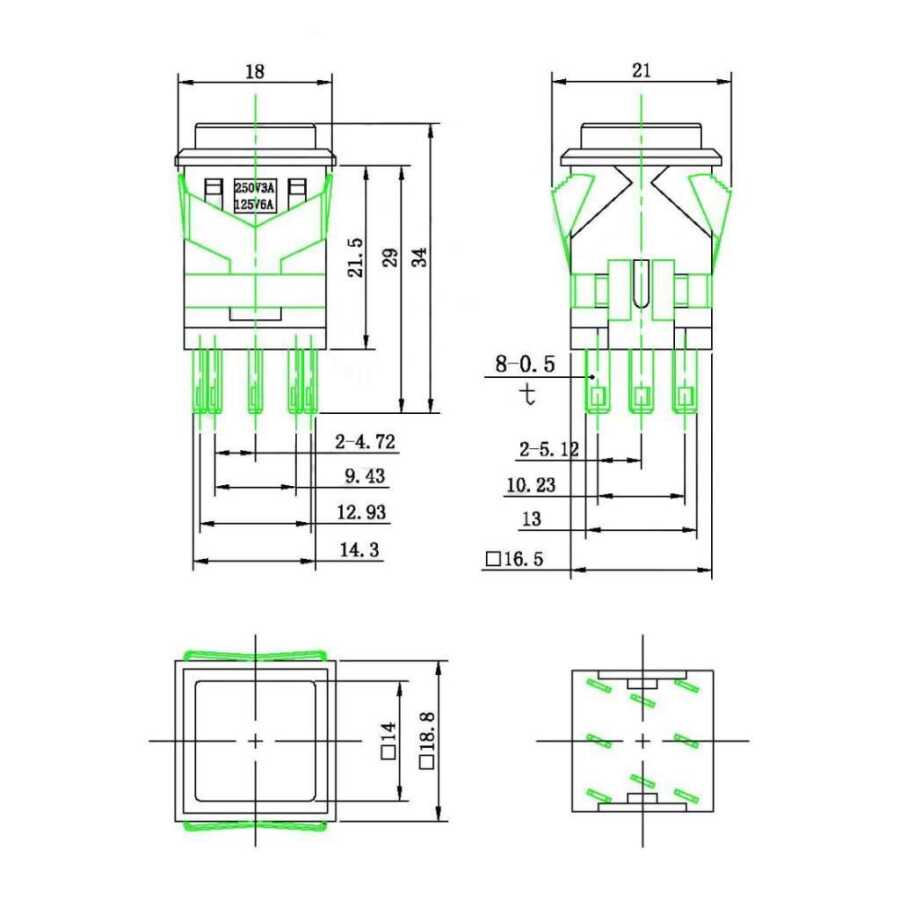

Outer Frame Size: 18, 5x18,5mm
Panel Connection Cutting Dimension: 17,2x17,2mm
Total Length: 34mm

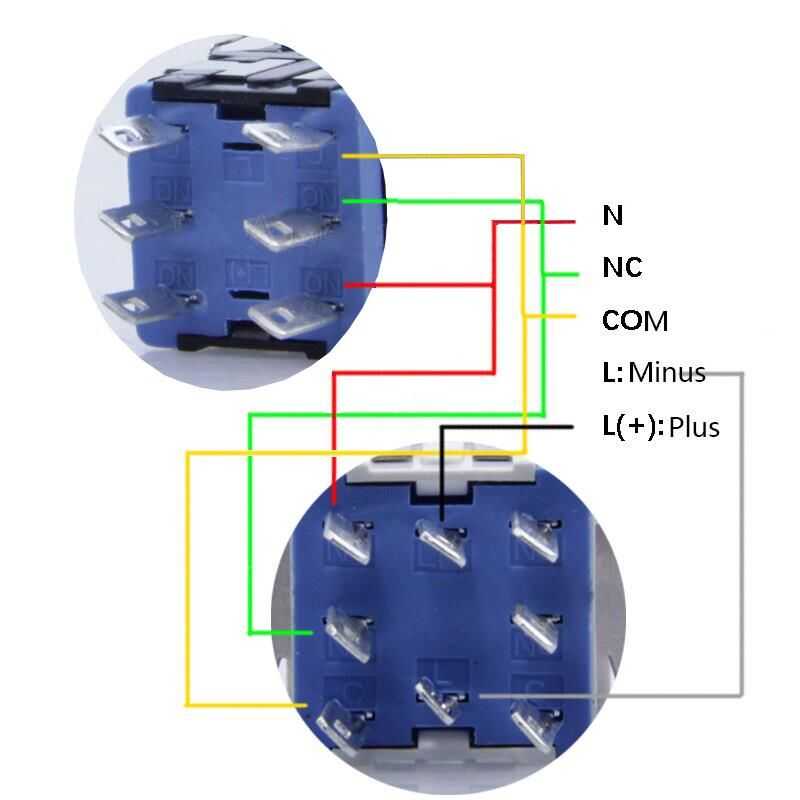

Terminal: 8 pin
Current / Voltage: 3A 250VAC/6A 125VAC
Contact Resistance: 100mΩ max.
Electrical Life: ≥ 10,000 Cycles
Dielectric strength: 500VAC 1 minute
Operating Temperature: -25℃~+85℃
Insulation Resistance: 100mΩ min (500VDC)
