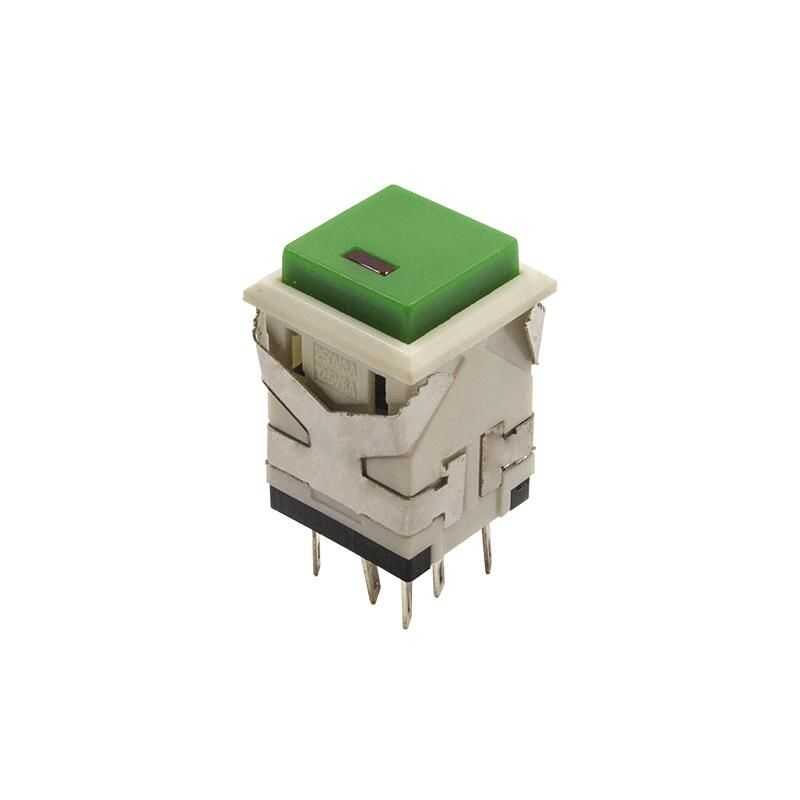

KD2-22 19mm Illuminated Push Button with Key - Green
When the Keyed Button is pressed, it will open and be in permanent state and will trigger a signal in this process, when pressed again the time signal will be activated. will be cut. It is an ideal keyed push button for your electronic applications.
Type: Keyed On -Off
Color: Green

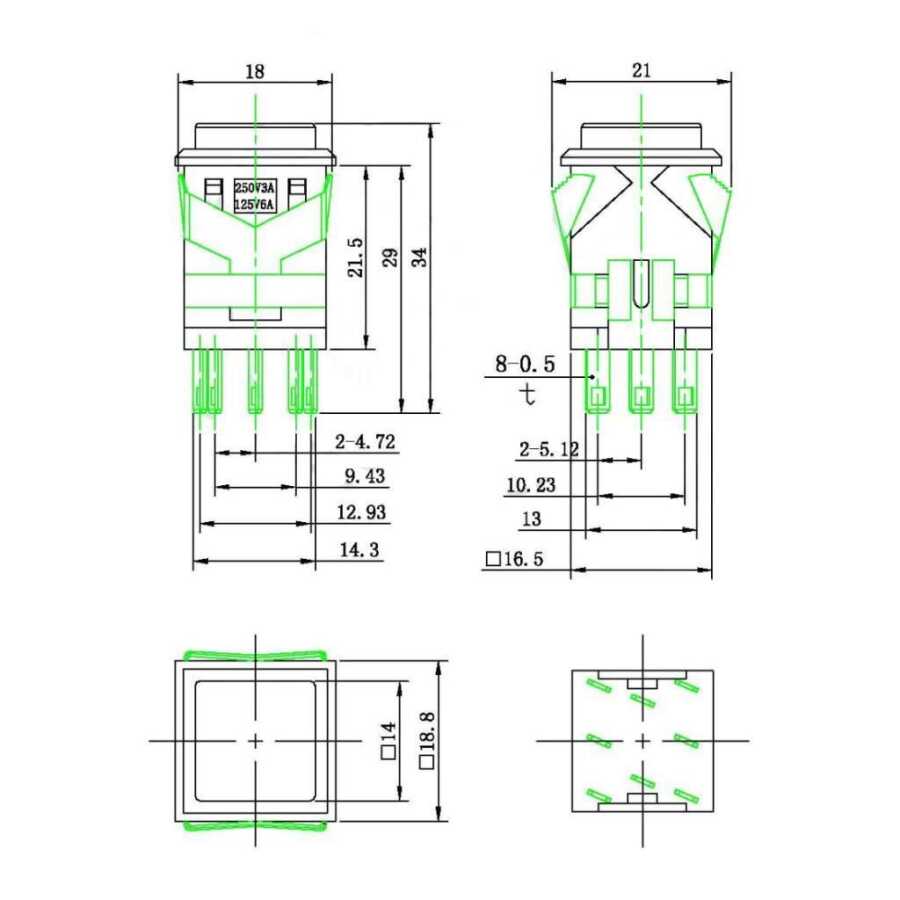

Exterior Square Size: 18.5x18.5mm
Panel Connection Cutting Dimension:17.2x17.2mm
Total Length: 34mm

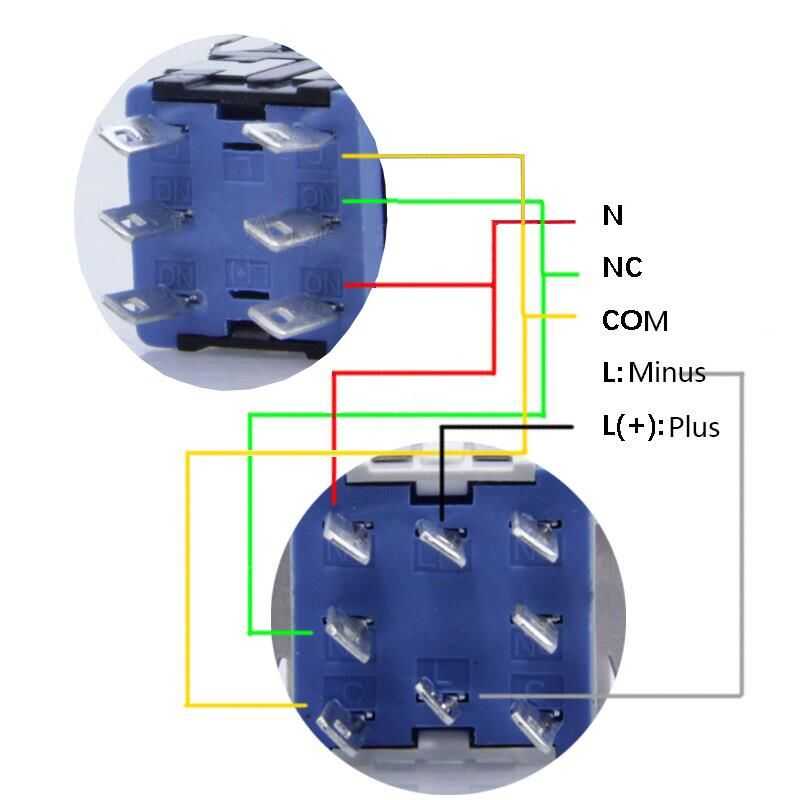

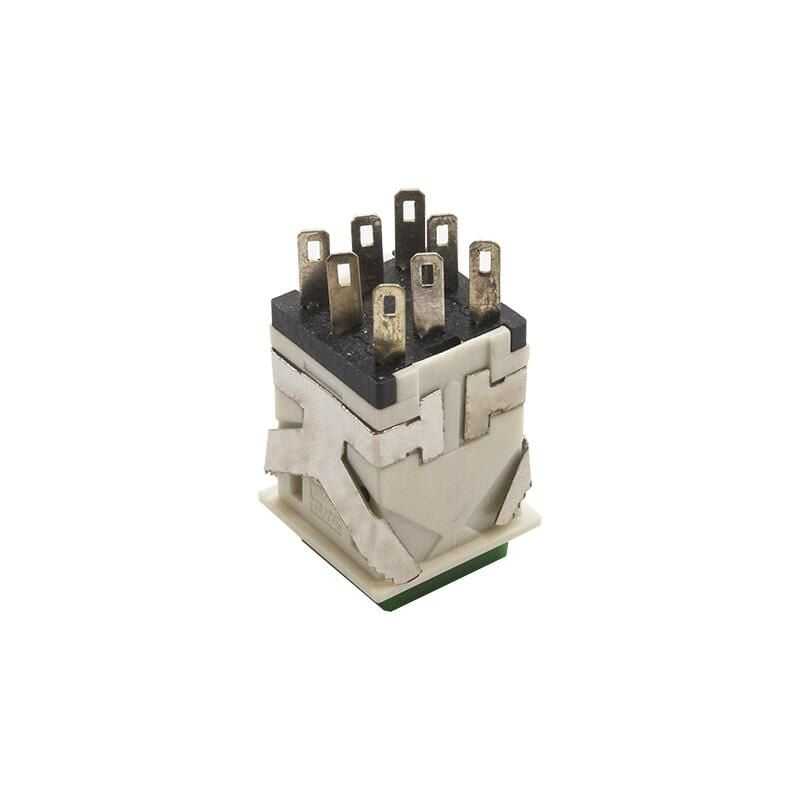

Terminal: 8 pin
Current / Voltage: 3A 250VAC /6A 125VAC
Contact Resistance: 100mΩ max.
Electrical Life: ≥ 10,000 Cycles
Dielectric strength: 500VAC 1 minute
Operating Temperature: -25℃~+85℃
Insulation Resistance: 100mΩ min (500VDC)
