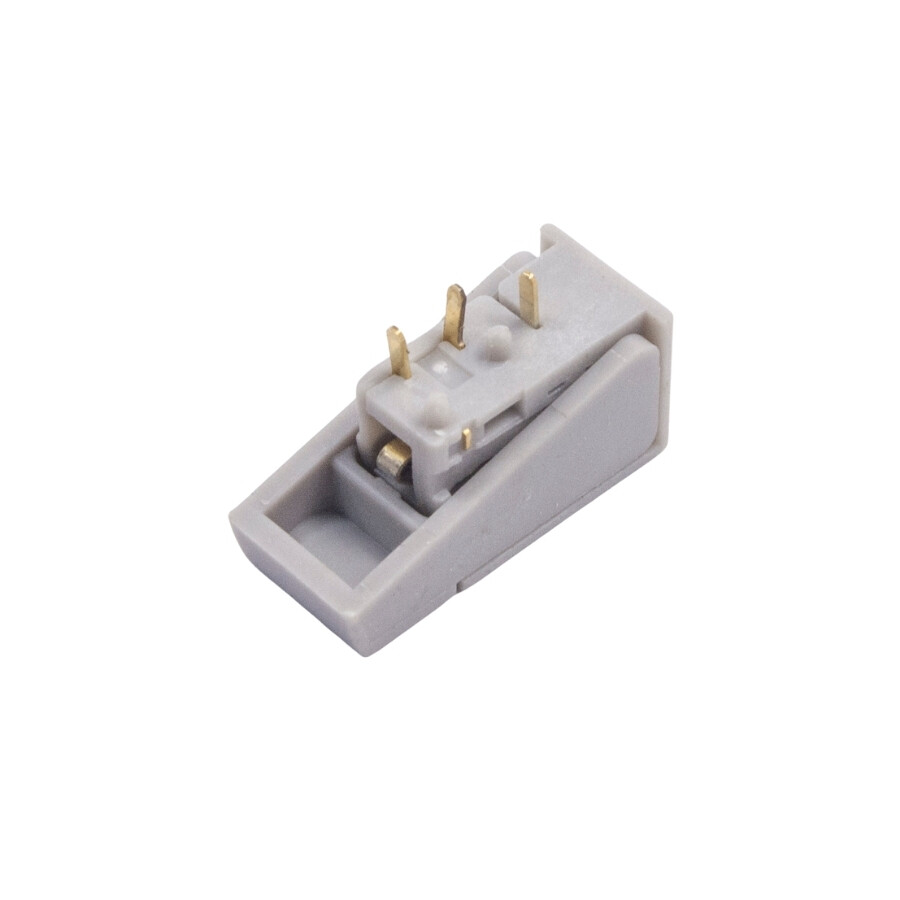

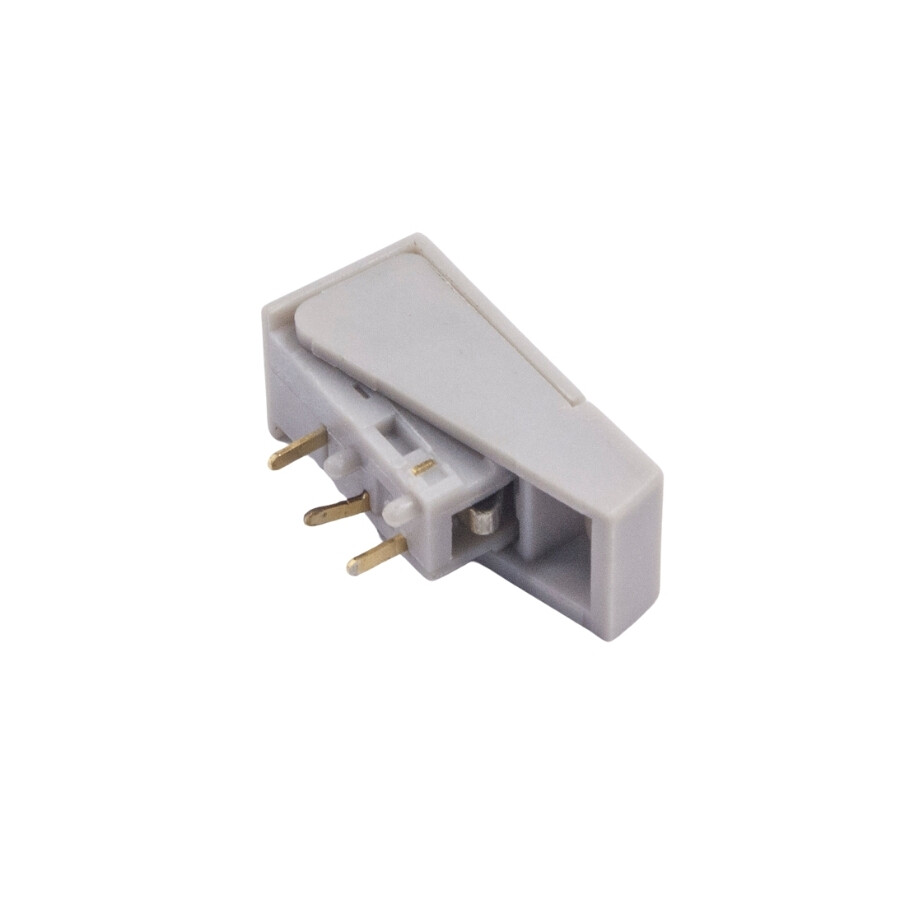

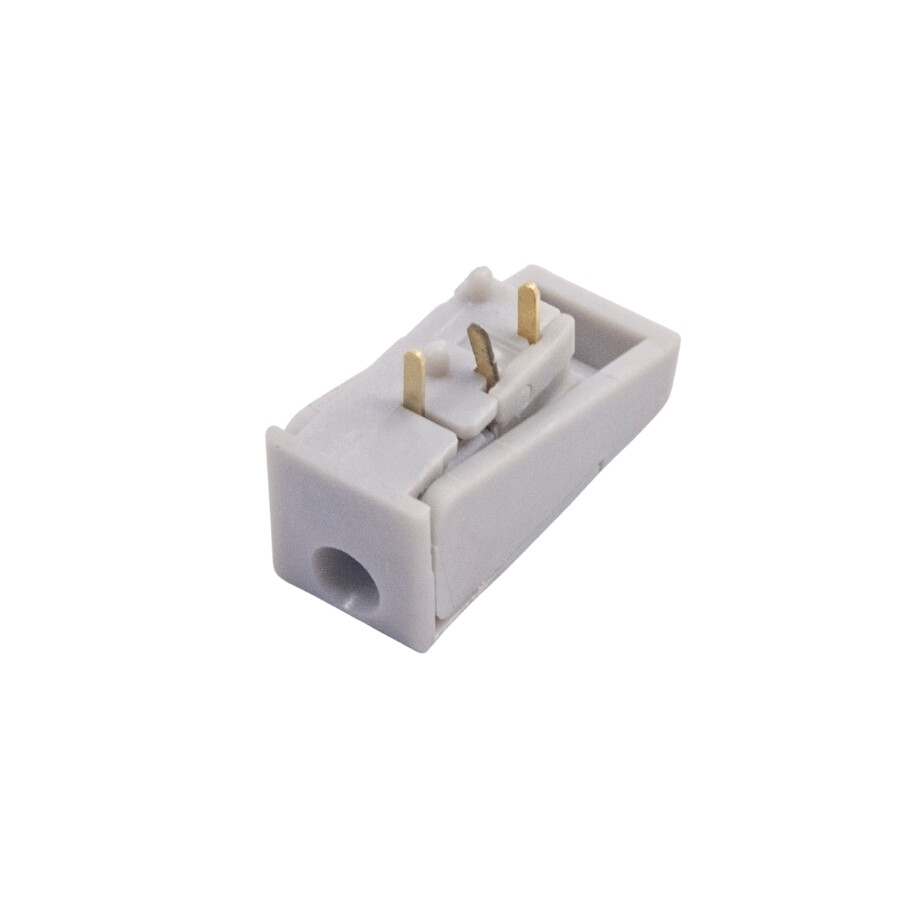

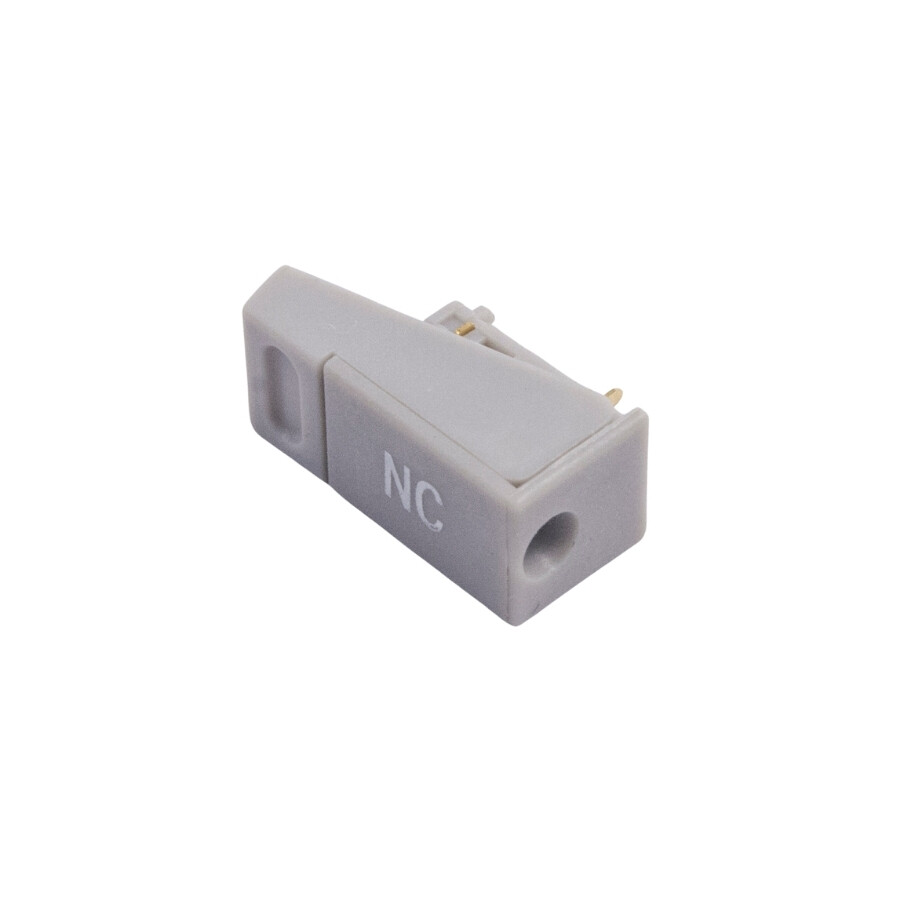

KF1050 Multiplexable Terminal Block and Dip Switch - NC

KF1050 Multiplexable Terminal Block and Dip Switch - NC

KF1050 Multiplexable Terminal Block and Dip Switch - NC is a terminal block and dip switch that you can use in most of your electronic projects. It has 3 pins. When you connect normally, it functions as a terminal. You can cut off the current flow by pressing the button on the back.

Technical Specifications

• Voltage: 24 - 36V DC / 220 VAC
• Current : 10A
• Contact Resistance: 20mOhm
• Cable Cross-Section: 18AWG
• Operating Temperature Range: -40 ~ 105°C
