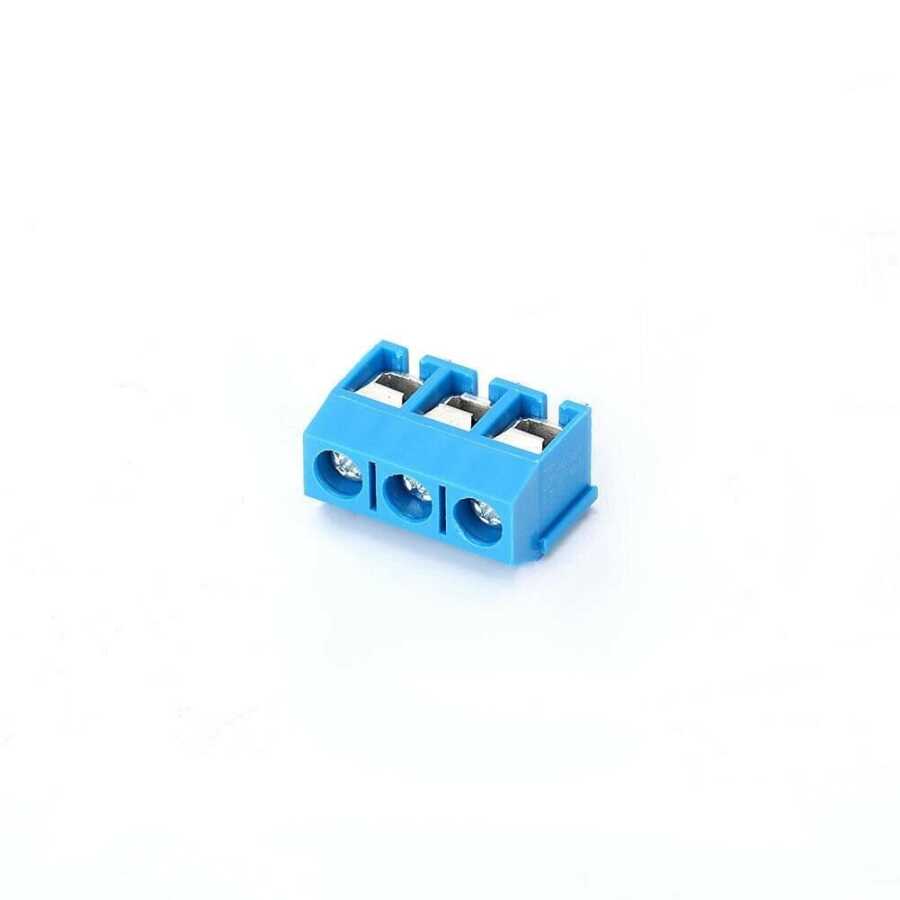

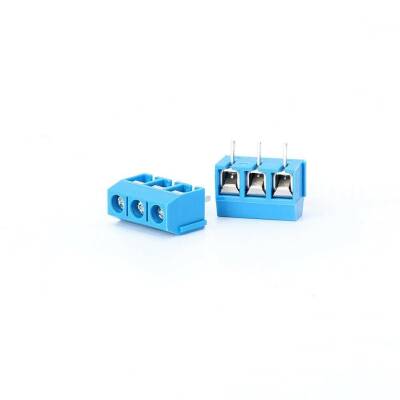

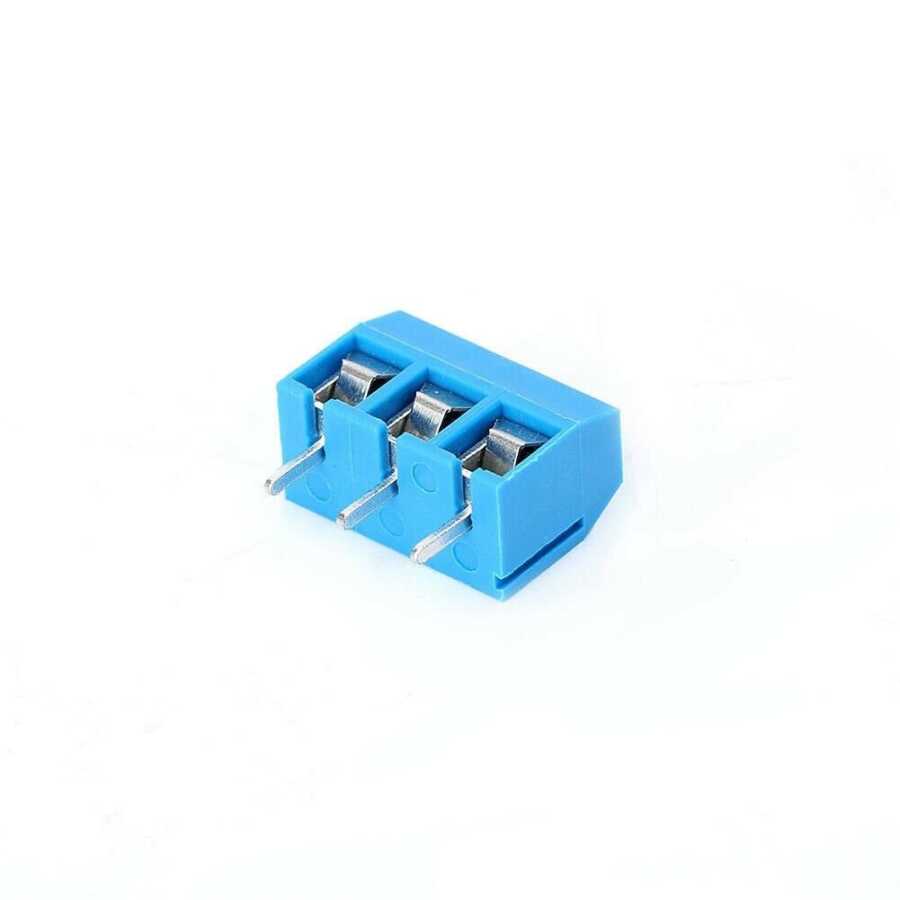

KF301-3P 5.08mm 3 Pin Terminal Terminal
KF301-3P 3 pin terminal block. Solderable terminal block that you can use in all electrical and electronic projects. It is 15x10x7.5mm in size.
Technical Specifications:
- Width: 5.08mm
- Number of Pins : 3
- Screws: M2.5 steel Zinc plated
- Rated voltage: 300V
- Rated current: 16A
- Contact resistance: 20mΩ
- Insulation resistance: 5000MΩ / 1000V
- Withstand Voltage: AC1500V / 1Min
- Wire pitch: 22-14AWG / 2.5mm²
- Temperature Range: -30°C ~ 120°C
