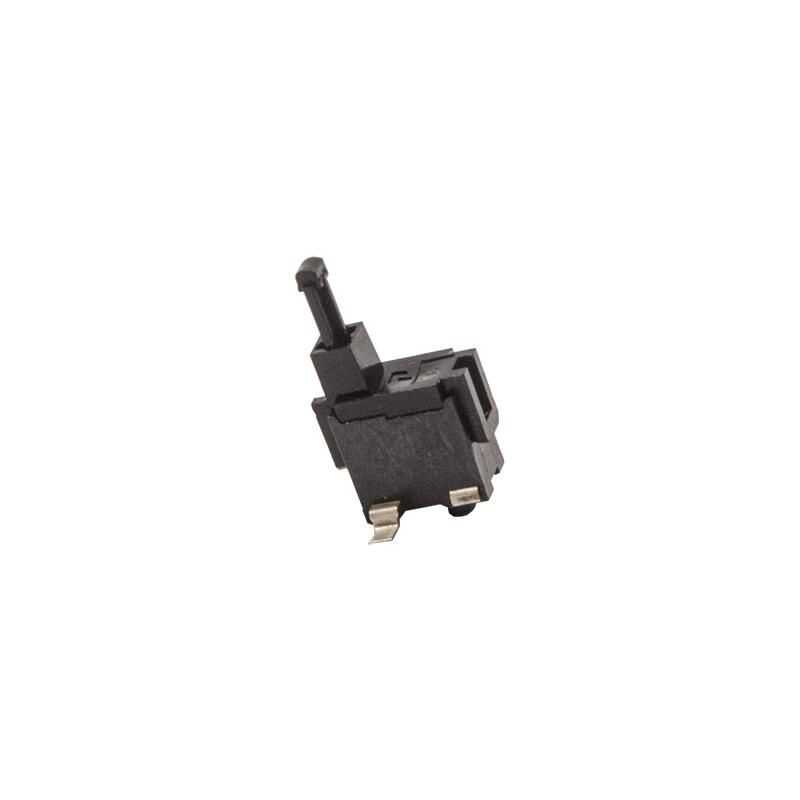

KFC-W-07A Micro Switch NO 2-Pin

2 Pin detector switch. When the normally open circuit product is pressed, the circuit is closed and energy flow is provided.



Pin: 2 Pin 1No COM

Current / Voltage: 30V DC 0.1A

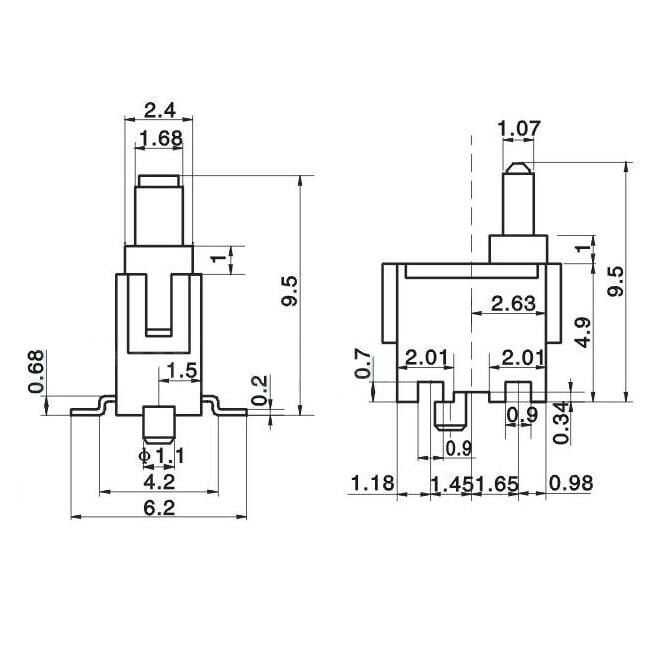

Dimensions:  6.3x3x5.2mm (excluding pins)

Button Height: 3.2mm

Min. Switch Life: 50,000 cycles
