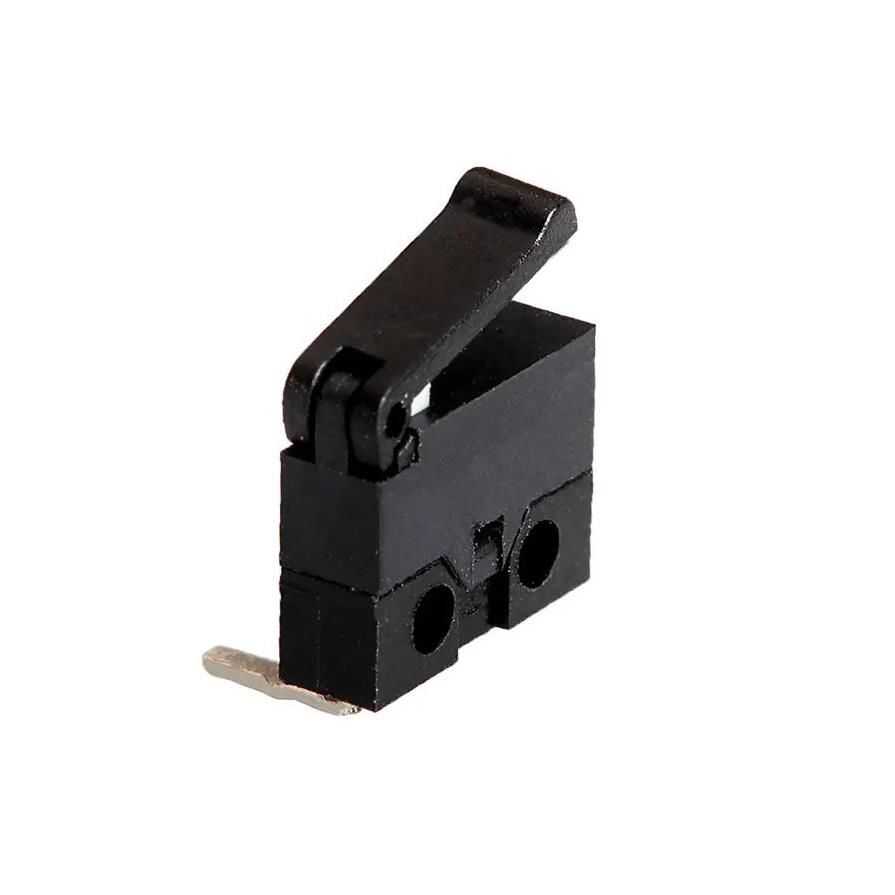

PBT housing, cover and handle, POM actuator, silver alloy contacts and It is a single-pole, double-throw Snap Action Switch with silver-plated terminals.
Pin: 3 Pin 1No 1NC COM
< DIV>Current / Voltage: 30V DC 100mA
Circuit： NO/NC
Insulation Resistance：≥ 100MΩ
Contact Resistance：≤ 500mΩ
Withstand Voltage：AC500V/min
Min. Switch Life: ≥ 50,000 cycles
