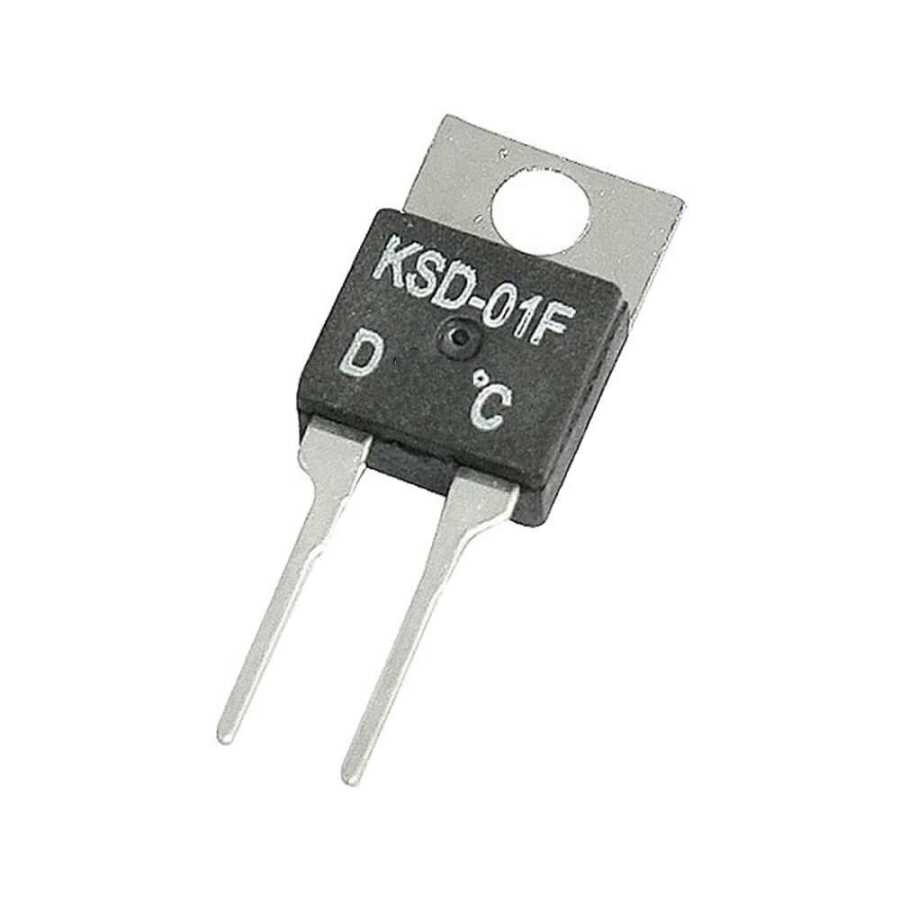

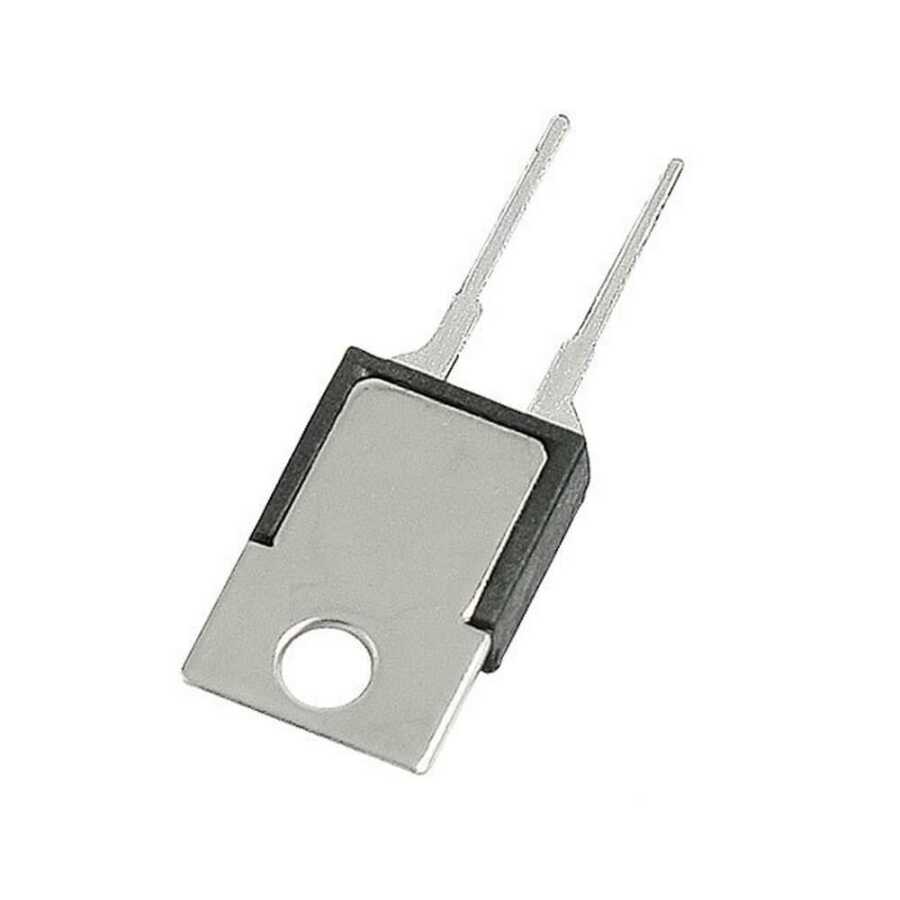

KSD-01F NO (H) 100 °C Thermostat Temperature Switch TO220
KSD-01F NO (H) Thermostat Temperature Switch, TO220 two pin in sheath is a switch that operates depending on the temperature. This product is NO (Normally Open circuit) model. When it reaches the temperature value stated in its name, the circuit will be closed and energy will be transferred. As long as the temperature value is below the value written in the name, there will be no energy transfer.
Technical Specifications:
- Max Voltage: 250VAC
- Current: 1.5A
- Sheath: TO220
- Ambient Operating Temperature Range: -55 - 150 °C
- Trigger Temperature Value: 100 °C
