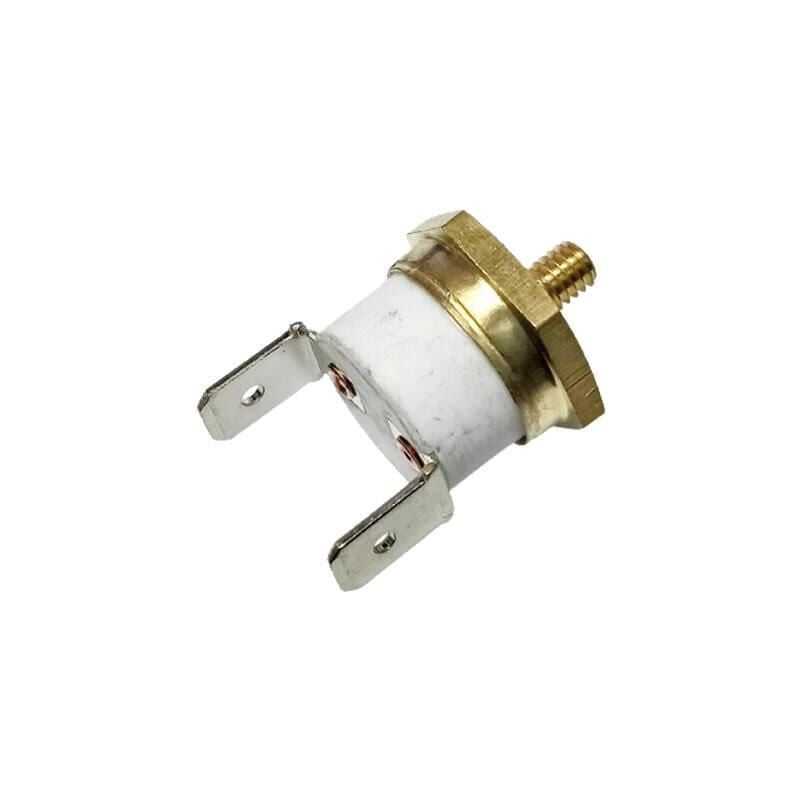

KSD301 180 °C Screw Limit Thermostat NC 250V 10A
KSD301 180 degree normally closed circuit screw limit thermostat. Since this product is a closed circuit, it passes voltage until the temperature reaches 180 degrees, and when it reaches 180 degrees, it cuts off the voltage. It is made of high quality ceramic material.
Unlike other models, screw limit thermostats have a screwed part to fix the mounting holes in place. Its size is M4. There are no bolts included in the product.
Features:
- 250V 10A
- NC
- Pentagonal part distance between two opposite surfaces: 17mm
- Length: 20mm Excluding connection legs
- Screw part: m4 x 5mm
