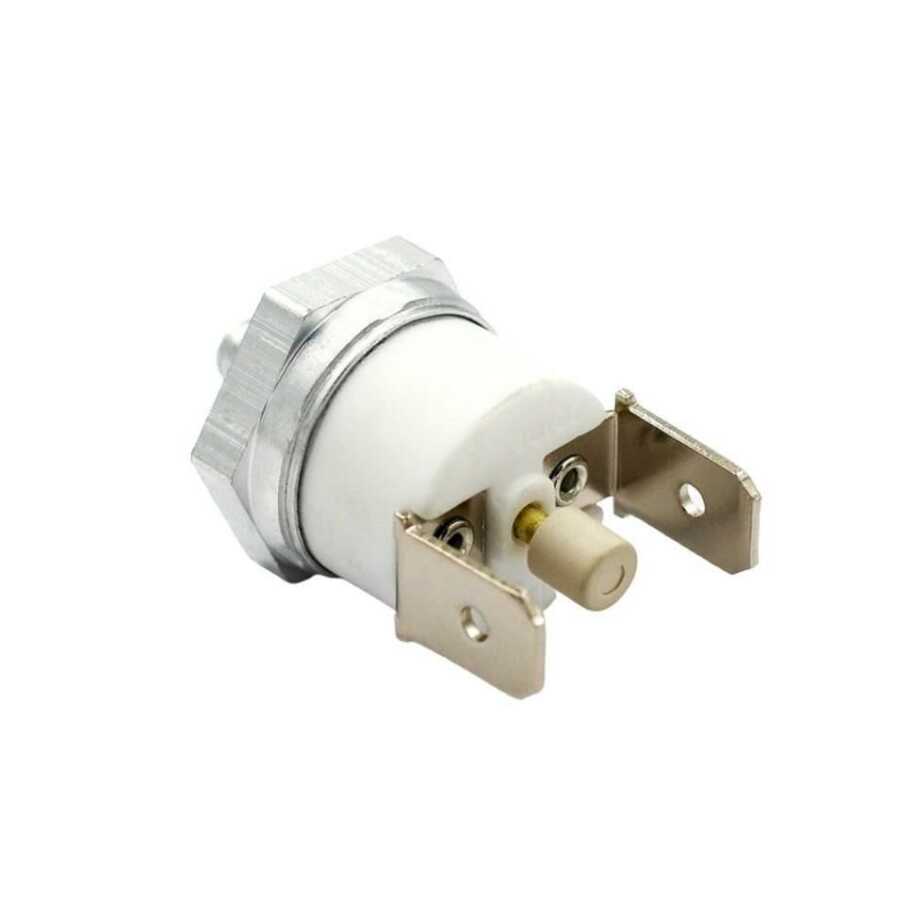

KSD301 45 °C Limit Thermostat with Screw Reset Button NC 250V 10A



KSD301 45 degree normally closed circuit limit thermostat with screws and reset button. Since this product is a closed circuit, it passes voltage until the temperature reaches 45 degrees, and when it reaches 45 degrees, it cuts off the voltage. It is made of high quality ceramic material.



Unlike other models, screw limit thermostats have a screwed part to fix the mounting holes in place. Its size is M4. There are no bolts in the product.



The product cuts off the electricity flow when the specified temperature is reached in limit thermostats with a reset button. To activate it again, you need to press the reset button on the back.
