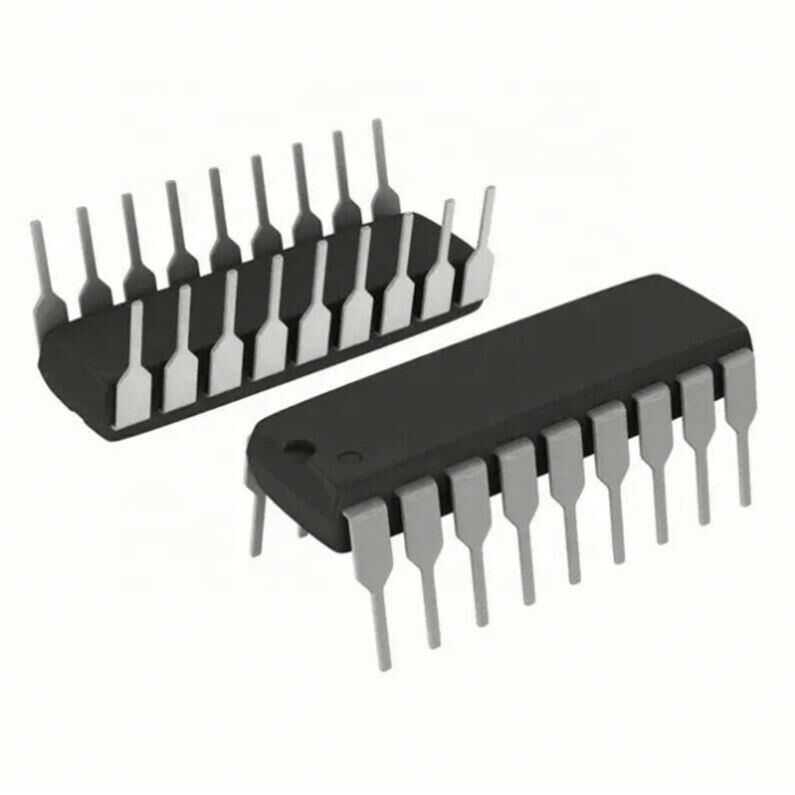

L6506 DIP-18 Motor Driver IC

The L6506/D is a linear integrated circuit designed to sense and control current in stepper motors and similar devices. When used with L293, L298, L7150, L6114/L6115, it creates a constant current driver for the inductive load and realizes the entire interface function from the control logic through the power stage. Two or more devices can be synchronized using the sync pin. In this mode of operation, the oscillator on the main chip sets the operating frequency on all chips.
