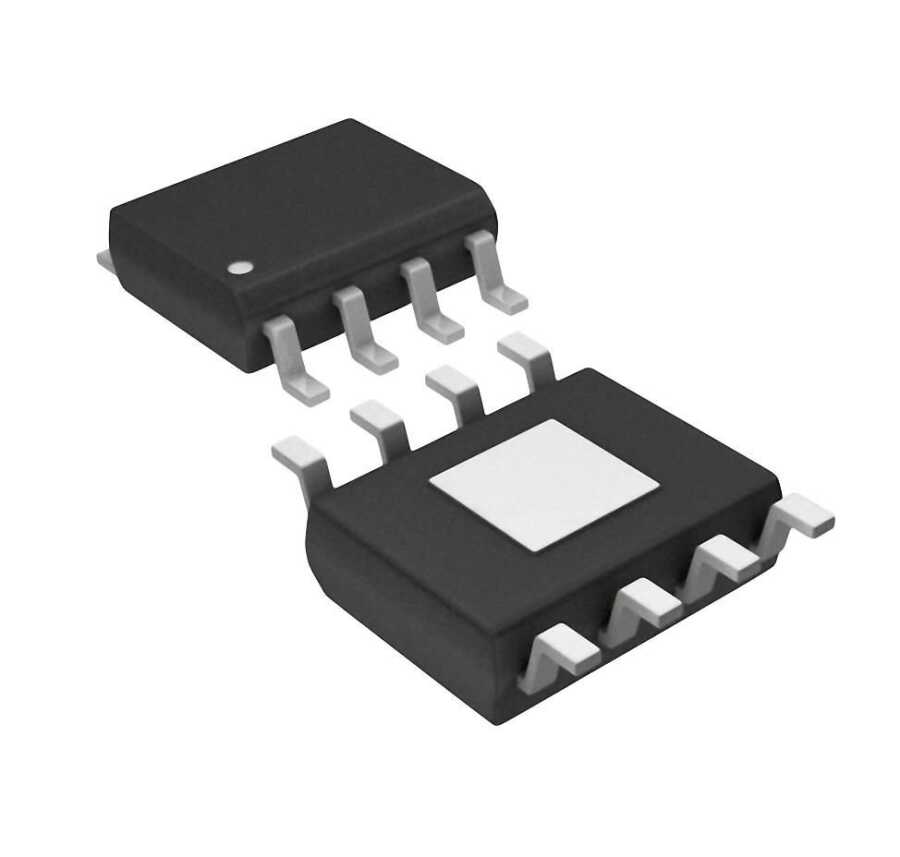

L7985ATR HSOP-8 SMD 2A Voltage Regulator
The L7985/A is a step-down switching regulator with a 2.5 A (minimum) current-limited embedded power MOSFET, so it can deliver up to 2 A of current to the load depending on application conditions. The input voltage can vary from 4.5 V to 38 V, while the output voltage can be adjusted from 0.6 V to VIN. Requiring a minimal set of external components, the device includes an internal 250 kHz switching frequency oscillator that can be tuned externally down to 1 MHz.
Usage Areas
STB, DVD, DVD recorder, car audio system, LCD TV and monitors
Industrial: PLD, PLA, FPGA, chargers
Network communication: XDSL, modems, DC-DC modules
Computer: optical storage, hard disk drive, printers, sound/graphics cards
LED driving
| Series |
L7985ATR |
| Supply Voltage |
4.5V-38V |
| Output Voltage |
600mV - 38V |
| Output Current |
2A |
| Number of Exits |
1 Exit |
| Number of Pins |
8 Pin |
| Package Type |
HSOP-8 |
