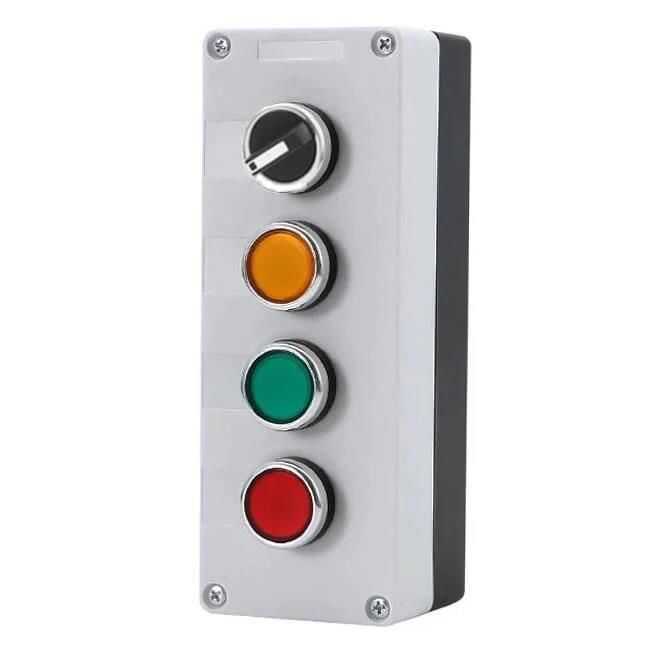

Latch Switch and Triple Push Button Box
Button box is also known as control box. Various applications can be made in button boxes depending on the number and type of buttons. It is suitable for use in various applications such as garage door applications, starting and directional control of various electric motors, opening and closing operations, and places requiring emergency stopping. However, these operations vary depending on the variety and type of buttons.
The cable entry channel of the product
PG-13.5 fittings. Gland is not included in the product.
Features:
- Number of Buttons: 1 latch switch, 3 push buttons
- Contact Structure : 1NO and 1NC (number of contacts of a button)
- Max Voltage: 440V
- Max Current: 10A (per button)
- Box Size: 195x72mm
- Box Height: 65mm (excluding button)
- Cable Connection Hole Diameter: 18mm
