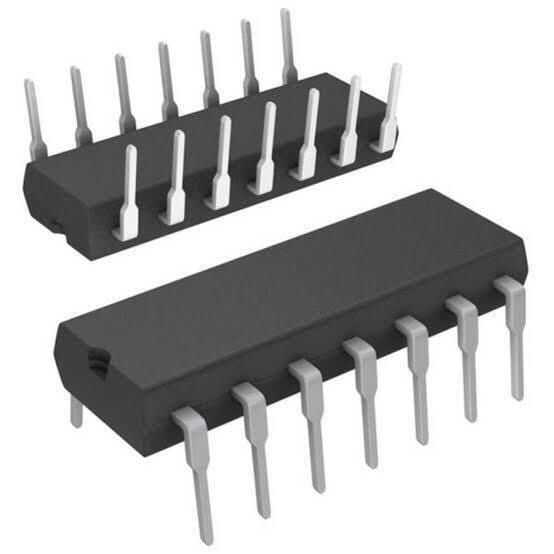

LF347N DIP-14 OpAmp IC
LF347 and LF347B devices are low-cost, high-speed, JFET input operational amplifiers. They require low supply current but provide a large gain bandwidth product and a fast slew rate. Additionally, compatible high-voltage JFET inputs provide very low input bias and offset current. The LF347 and LF347B can be used in applications such as high-speed integrators, digital-to-analog converters, sample and hold circuits, and many other circuits.
Usage Areas
Motorized Integrated Systems: UPS
Drives and Control Solutions: AC Inverters and VF Drives
Renewable Energy: Solar Inverters
Professional Audio Mixers
Oscilloscopes
| Series |
LF347N |
| Supply Voltage |
7-36V |
| Bandwidth |
3MHz |
| Output Current |
31 mA |
| Number of Channels |
4 Channel |
| Number of Pins |
14 Pin |
| Package Type |
DIP-14 |
