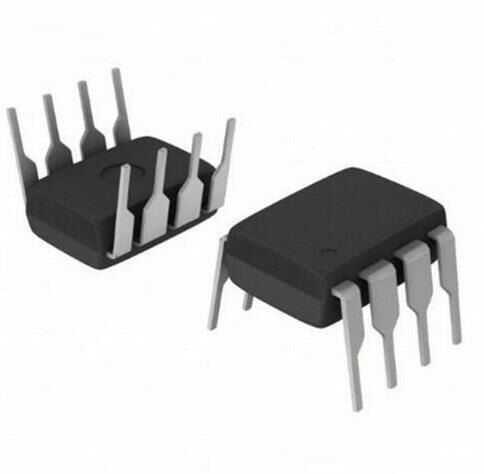

LF356 DIP-8 SMD OpAmp IC
LF356N is a monolithic JFET for combining well-matched, high-voltage JFETs on the same chip with standard bipolar transistors The input is precision Operational Amplifier. These amplifiers feature low input bias and offset currents/low offset voltage and offset voltage drift combined with offset tuning that does not distort drift or common mode rejection. The devices are also designed for high slew rate, wide bandwidth, extremely fast settling time, low voltage and current noise, and low 1/f noise corner.
Areas of Use
Precision High Speed Integrators
Fast D/A and A/D Converter
High Impedance Buffers
Wideband, Low Noise, Low Drift Amplifiers
Logarithmic Amplifiers
Photocell Amplifiers
| Series |
LF356 |
| Supply Voltage |
10-55V |
| Output Current Per Channel |
25mA |
| Bandwidth |
5 MHz |
| Number of Channels |
1 Channel |

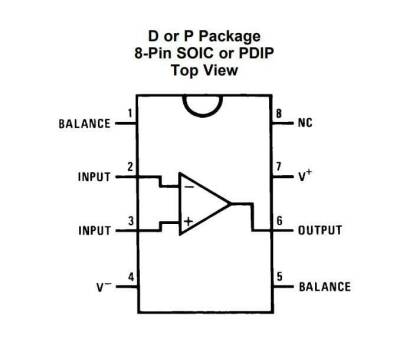

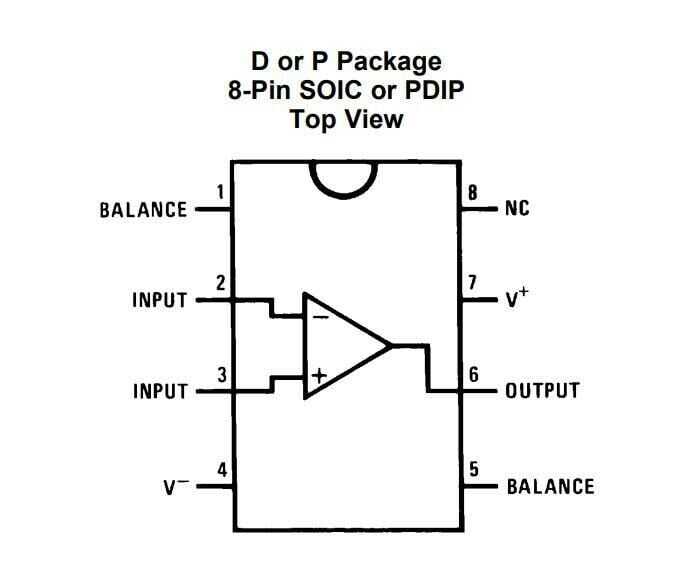

| Number of Pins |
8 |
| Package Type |
DIP-8 |
