LM258AWYPT TSSOP-8 OpAmp IC

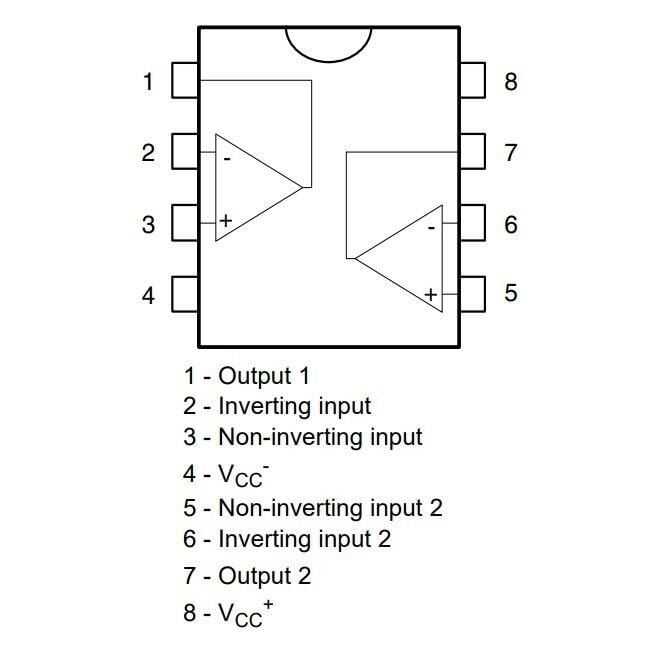

The LM158W, LM258W and LM358W circuits consist of two independent, high-gain, operational amplifiers (op-amps) that use an internal frequency compensation and are specifically designed to operate from a single power supply over a wide voltage range. Low power supply drain is independent of the magnitude of the power supply voltage. Application areas include converter amplifiers, DC gain blocks, and all conventional op-amp circuits that can now be more easily implemented in single power supply systems. For example, these circuits can be directly powered by the standard +5 V used in logic systems, easily providing the necessary interfacing electronics without an additional power supply. In linear mode, the input common mode voltage range includes ground. The output voltage may swing to ground even if powered from a single power supply voltage.

Series	LM258AWYPT
Supply Voltage	3V - 30V
Bandwidth	1.1 MHz
Per Channel Output Current	40 mA
Number of Channels	2 Channel
Number of Pins	8 Pin

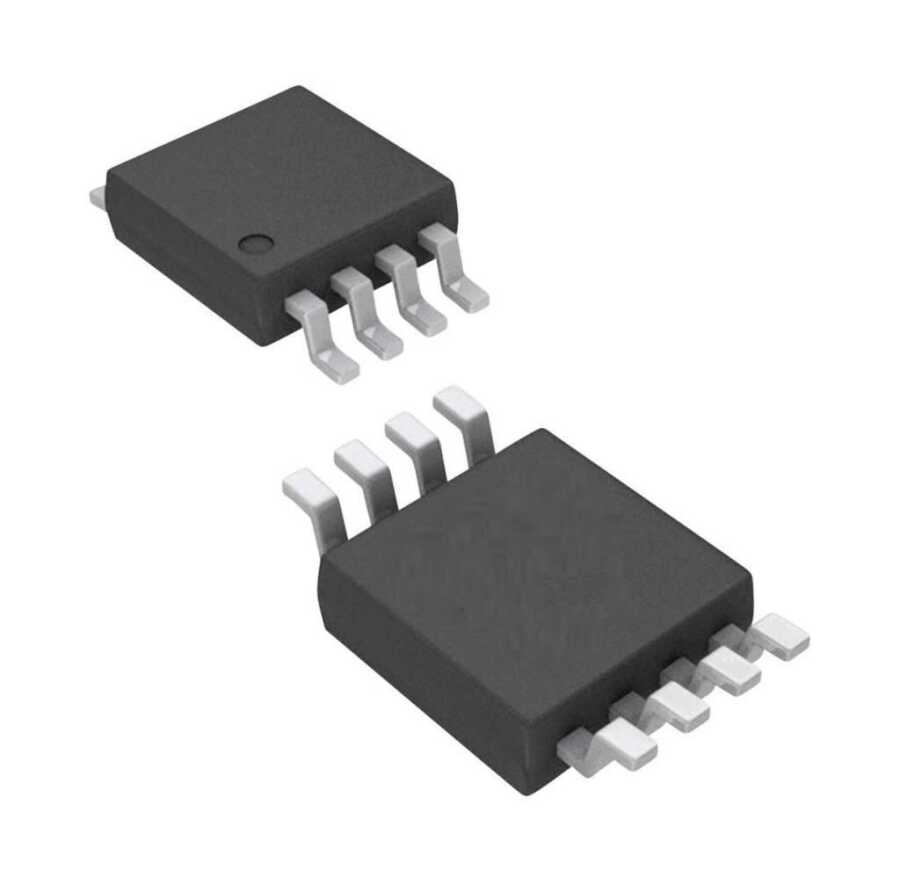

Package Type	TSSOP-8
