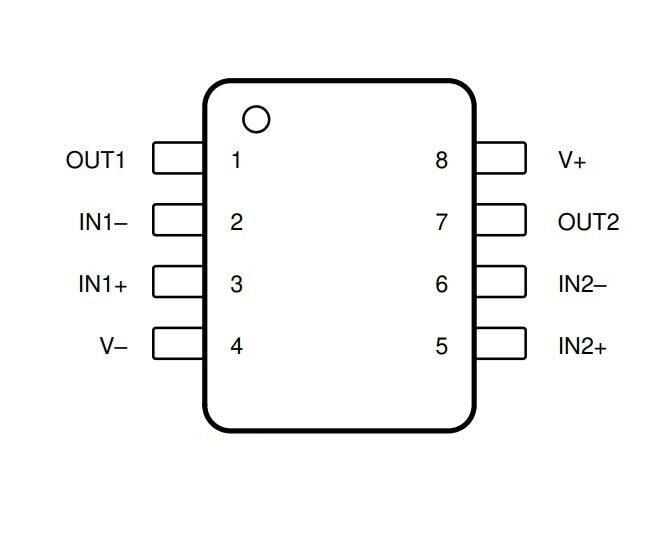

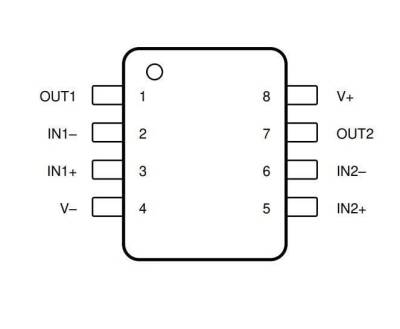

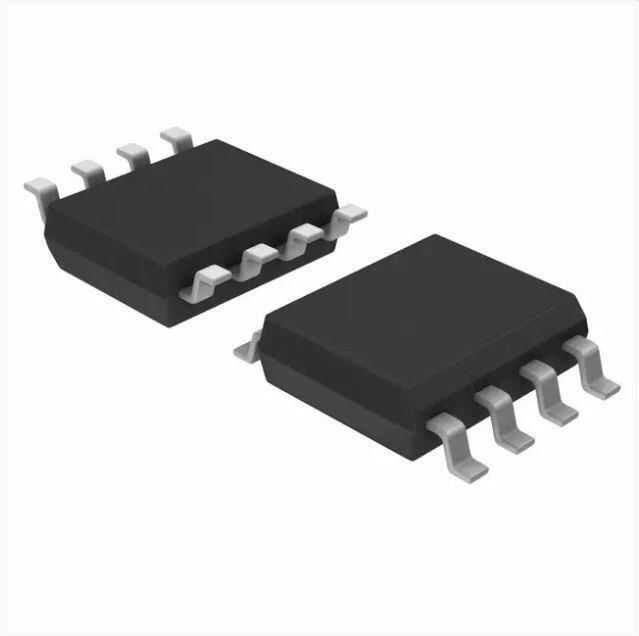

LM258DR SOIC-8 SMD OpAmp IC

The LM358B and LM2904B devices are next-generation versions of the industry-standard operational amplifiers (op amps) LM358 and LM2904, which include two high-voltage (36 V) op amps. These devices provide exceptional value for cost-sensitive applications with features such as low offset (300 µV, typical), common-mode input range to ground, and high differential input voltage capability.

LM358B and LM2904B op amplifiers simplify circuit design with advanced features such as unity gain stability, lower offset voltage of 3 mV (maximum at room temperature), and lower quiescent current of 300 µA per amplifier (typical). High ESD (2 kV, HBM) and integrated EMI and RF filters enable the LM358B and LM2904B devices to be used in the most rugged, environmentally demanding applications.

*Network and server power supply units

*Multifunction printers

*Power supplies and mobile chargers

*Motor control: AC induction, brushed DC, brushless DC, high voltage, low voltage, permanent magnet and stepper motor

*Desktop and motherboard

*Indoor and outdoor air conditioners

*Washing machines, dryers and refrigerators

*AC inverters, string inverters, central inverters and voltage frequency drives

*Uninterruptible power supplies

*Programmable logic controllers
