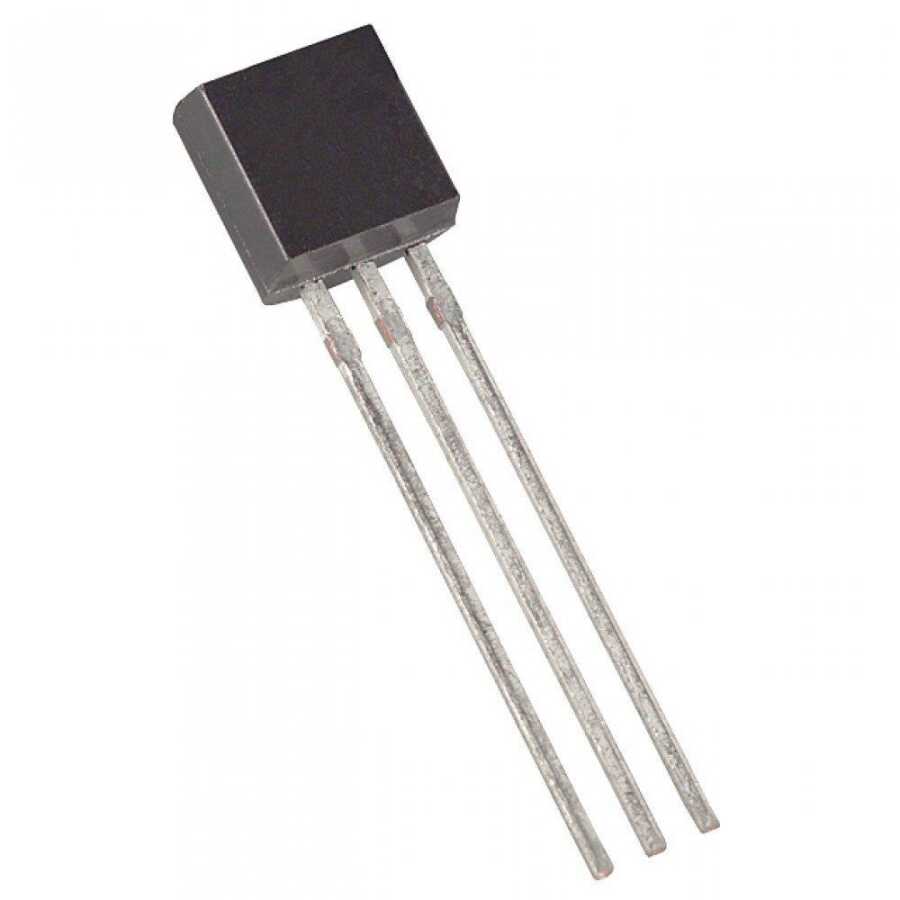

LM317LZ TO-92 40V 100mA Adjustable Voltage Regulator

LM217L/LM317L in SO-8 and TO-92 packages intended for use as positive adjustable voltage regulators They are monolithic integrated circuits. It is designed to provide load current up to 100 mA with an output voltage adjustable from 1.2 to 37 V. The nominal output voltage is selected simply by means of a resistive divider, making the device extremely easy to use and eliminating the stockpiling of many fixed regulators.

Series	LM317LZ
Supply Voltage	4.2-40V
Output Voltage	1.2-37V
Output Current	100mA
Output Type	Adjustable
Number of Pins	3
Package Type	TO-92
