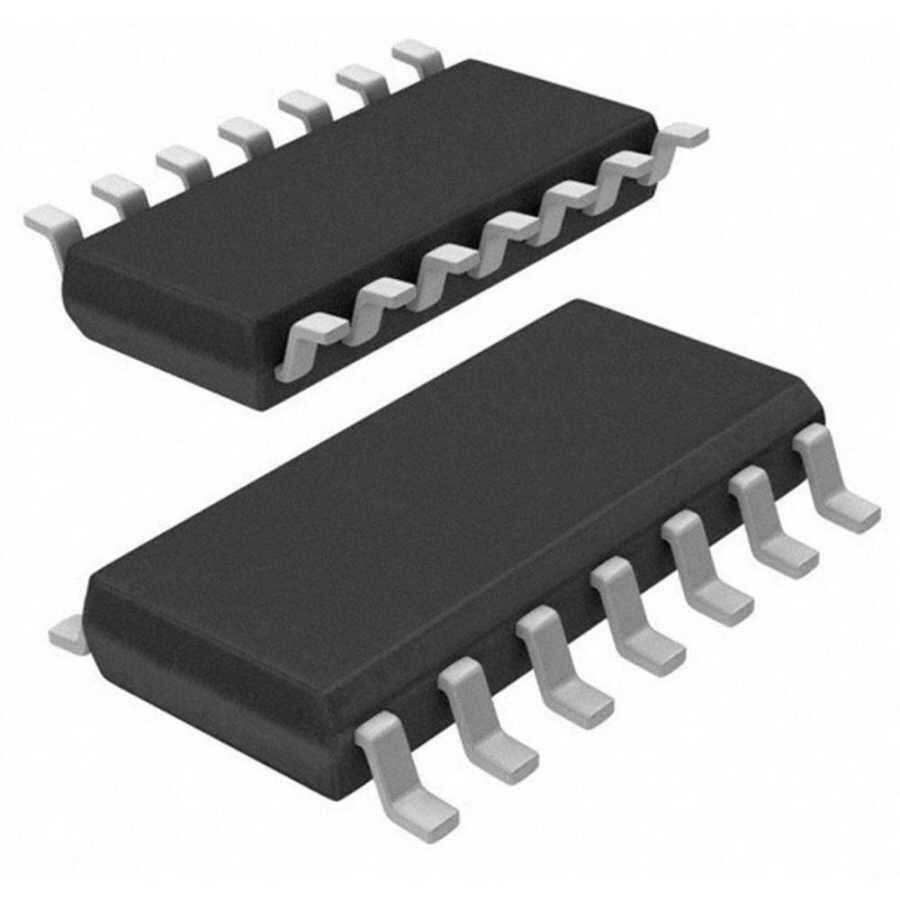

LM324AM SOIC-14 SMD OpAmp IC
The LM324 series features four independent, high-gain, internal circuits designed to operate from a single power supply over a wide voltage range. It consists of a frequency compensated operational amplifier. Operation from discrete power supplies is also possible and the low power supply current drain is independent of the magnitude of the power supply voltage.
Uses
• Converter Amplifiers
• DC Gain Blocks
• Conventional Op Amp Circuits
| Series |
LM324AM |
| Supply Voltage |
3-32V |
| Output Current Per Channel |
40 mA |
| Bandwidth |
1.2 MHz |
| Number of Channels |
4 Channel
|
| Number of Pins |
14 |
| Package Type |
SOIC-14 |
