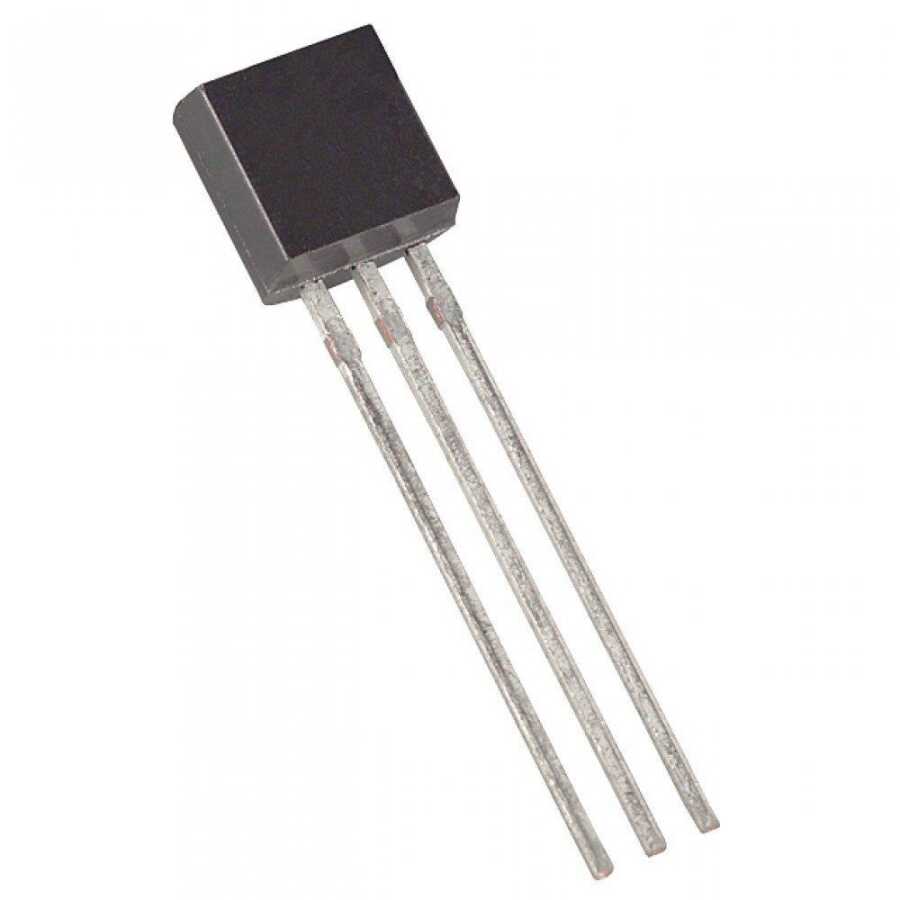

LM336Z5 TO-92 5V Programmable Shunt Regulator
LM136-5.0/LM236-5.0/LM336-5.0 integrated circuits are precision 5.0V shunt regulator diodes. These monolithic IC voltage references operate as low temperature coefficient 5.0V zeners with 0.6Ω dynamic impedance. A third terminal on the LM136-5.0 allows easy disconnection of the reference voltage and temperature coefficient.
| Series |
LM336Z5 |
| Output Voltage |
5V |
| Temperature Coefficient |
20 PPM/C |
| Initial Accuracy |
%1 |
| Shunt Current |
10 mA |
| Number of Pins |
3 Pin |
| Package Type |
TO-92 |
