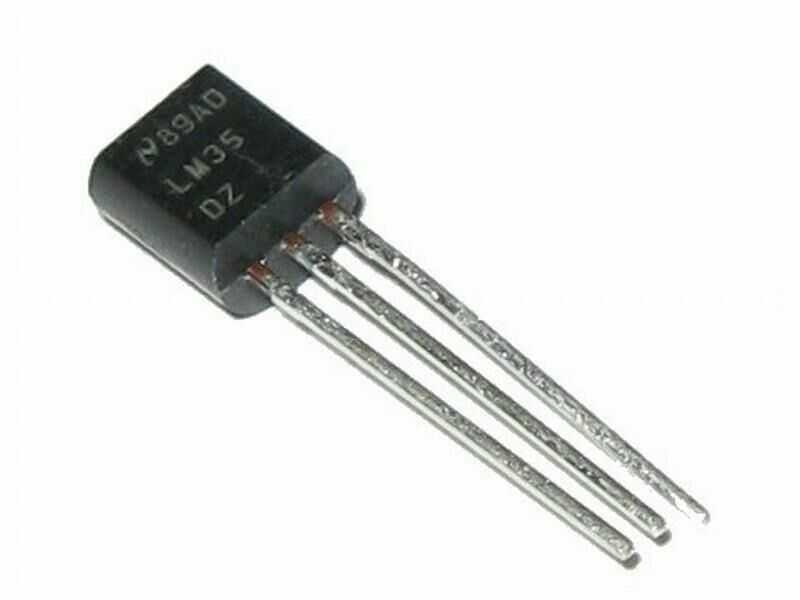

LM35 Temperature Sensor
LM35 is a high quality and low cost temperature sensor. It outputs analog data. The measurement range is between -55 °C and 150 °C. Measurement sensitivity is 10mV/degree.
LM35 is a simple thermometer with 3 pins. Can be easily connected to Arduino or any microcontroller.
Specifications:
- 0.5°C Accuracy Provided (+25°C)
- Suitable for Remote Applications
- Low cost
- Operates between 4-30 V
- Current less than 60 μA
- Low Impedance Output, 0.1 Ω for 1 mA Load
Arduino Wiring Diagram:
