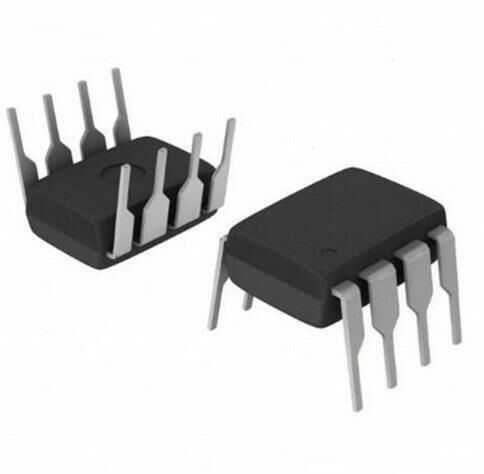

LM555 DIP-8 Timer IC
LM555 is a very stable device to produce accurate time delays or oscillation. Additional terminals are provided for triggering or resetting when desired. In time-delay operation mode, the time is precisely controlled by an external resistor and capacitor. For stable operation as an oscillator, the free-running frequency and duty cycle are accurately controlled by two external resistors and a capacitor. The circuit can be triggered and reset on falling waveforms, and the output circuit can source or sink up to 200 mA or drive TTL circuits.
Uses
Precise Timing
Pulse Generation
Sequential Timing
Time Delay Generation
Pulse Width Modulation
Pulse Position Modulation
| Series |
LM555 |
| Supply Voltage |
4.5-18V |
| Operating Supply Current |
10 mA |
| Pd - Power Distribution |
1180 mW |
| Number of Timers |
1 Timer
|
| Number of Pins |
8 Pin |
| Package Type |
DIP-8 |
