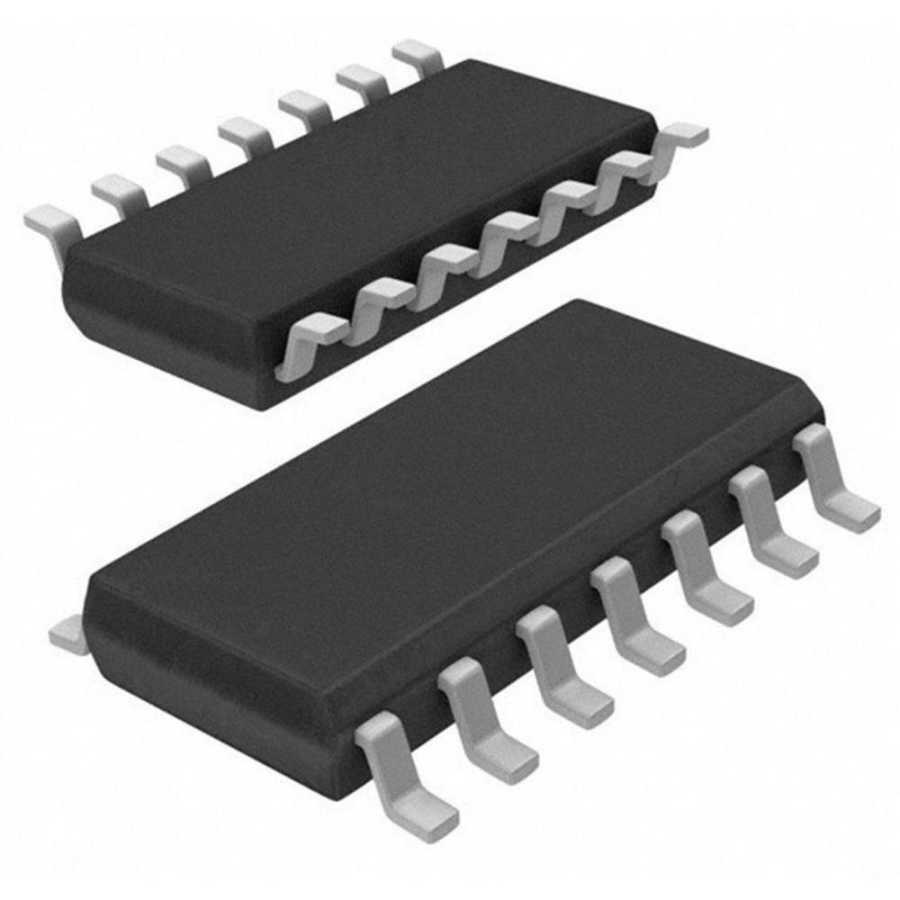

LM556 SOIC-14 Timer IC
LM556/NE556 series dual monolithic timing circuits are a highly stable controller capable of producing accurate time delays or oscillation. LM556/NE556 is a dual LM555. Timing, an external resistor and capacitor are provided for each timing function. The two timers operate independently of each other, sharing only VCC and ground. Circuits can be triggered and reset on falling waveforms. Output structures can sink or supply 200mA.
Uses
Precision Timers from Microseconds to Hours
Uses
Pulse Shaping Circuits
Missing Pulse Detectors
Tone Burst Generators
Pulse Width Modulators
Pulse-Position Modulators
Sequential Timers
Pulse Generators
Frequency Dividers
Application Timers
Industrial Controls
Touch Tone Encoders
| Series |
LM556 |
| Supply Voltage |
4.5-16V |
| Operating Supply Current |
12 mA |
| Pd - Power Distribution |
600 mW |
| Number of Timers |
2 Timer
|
| Number of Pins |
14 Pin |
| Package Type |
SOIC-14 |
