LM567CMX SOIC-8 Smd Codec IC

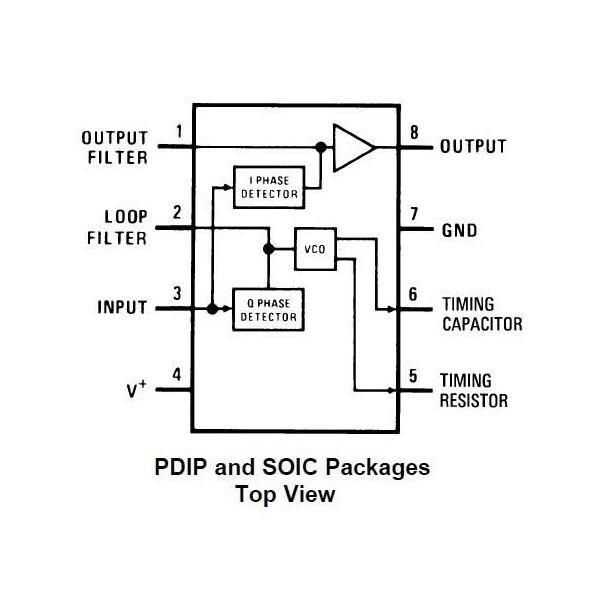

LM567 and LM567C are general purpose designed to provide a saturated transistor switch to ground when an input signal is present in the passband are tone decoders. The circuit consists of an I and Q detector driven by a voltage-controlled oscillator that determines the center frequency of the decoder. External components are used to independently adjust the center frequency, bandwidth and output delay.
Uses
Touch Tone Decoding
Precision Oscillator
Frequency Monitoring and Control
Wideband FSK Demodulation
Ultrasonic Controls
Carrier Current Remotes
Communication Paging Decoders
| Series |
LM567CMX |
| Supply Voltage |
3.5-8.5V |
| Operating Supply Current |
12 mA |
| Pd - Power Distribution |
1.1 W |
| Frequency |
500 kHz
|
| Number of Pins |
8 Pin |
| Package Type |
SOIC-8 |
