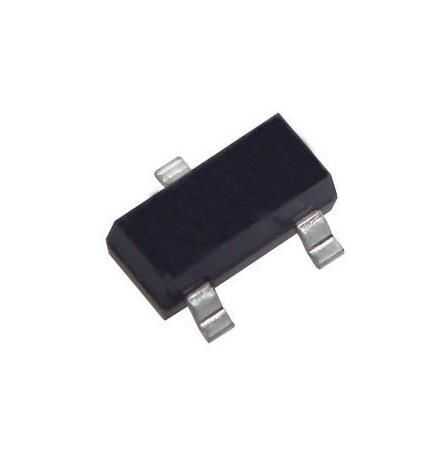

LM60BIM3 SOT-23 Smd Temperature Sensor
LM60 device operates from a single 2.7 V supply -40°C to +125°C It is a sensitive integrated circuit temperature sensor that can detect the temperature range. The device's output voltage is linearly proportional to Celsius temperature (6.25 mV/°C) and has a DC offset of 424 mV. Offset allows negative temperatures to be read without the need for a negative source.
Uses
Mobile Phones and Computers
Power Supply Modules
Battery Management
Fax Machines and Printers
HVAC and Disk Drives
| Series |
LM6X |
| Supply Voltage |
2.7-10V |
| Accuracy |
+/- 3 C |
| Resolution |
6.25 mV/°C |
| Output Type |
Analog
|

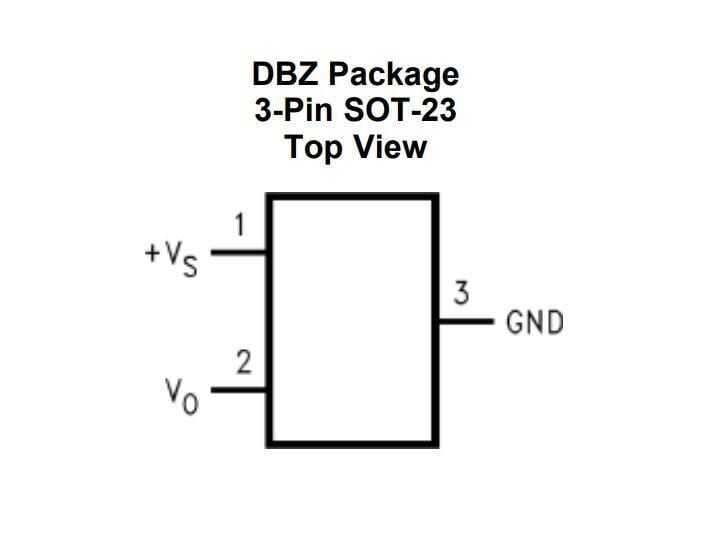

| Number of Pins |
3 Pin |
| Package Type |
SOT23 |
