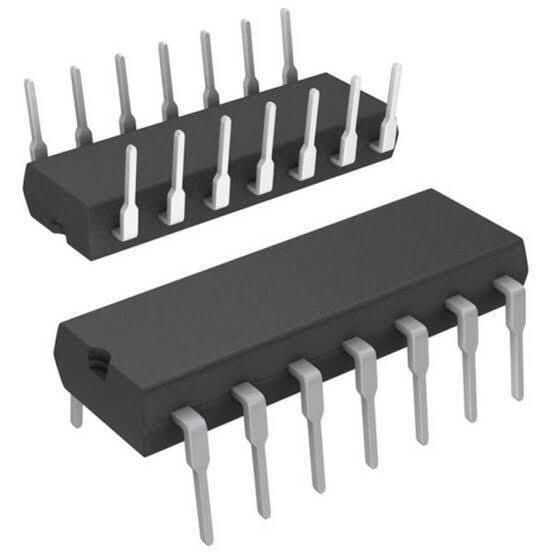

LM723CN DIP-14 Voltage Regulator IC
LM723CN is a monolithic integrated programmable high Precision Voltage Regulator. The circuit provides internal current limiting. When the output current exceeds 150mA, an external NPN or PNP transition element can be used. Provisions are made for adjustable current limiting and remote shutdown.
| Series |
LM72X |
| Supply Voltage |
40V Max |
| Output Voltage |
2-37V |
| Output Current |
150mA |
| Output Type |
Adjustable
|

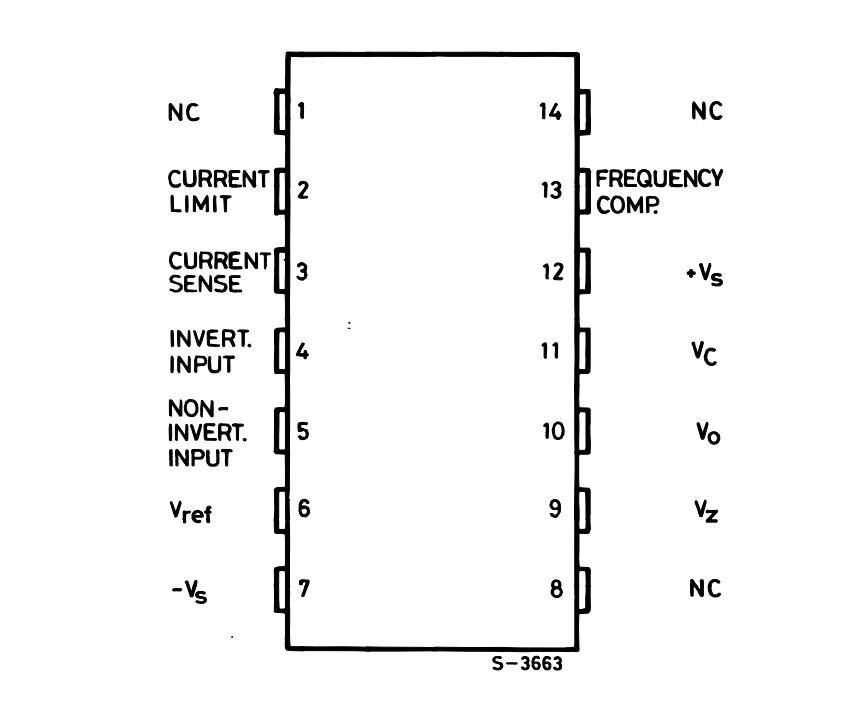

| Number of Pins |
14 |
| Package Type |
DIP-14 |
