LMD18200 Motor Driver IC TO-222-11
LMD18200 is a 3A H-Bridge designed for motion control applications. The device is built using a multi-technology process that combines bipolar and CMOS control circuitry on the same monolithic structure as DMOS power devices. Ideal for driving DC and stepper motors; The LMD18200 accommodates peak output currents up to 6A. An innovative circuit has been implemented that facilitates the detection of the output current with low loss.
Usage Areas
DC and Stepper Motor Drivers
Position and Speed Servo Mechanisms
Factory Automation Robots
Numerically Controlled Machines
Computer Printers and Plotters
| Series |
LMD18200 |
| Supply Voltage |
12-55V |
| Operating Supply Current |
13ma |
| Output Current |
3A |
| Number of Exits |
2 Exits
|

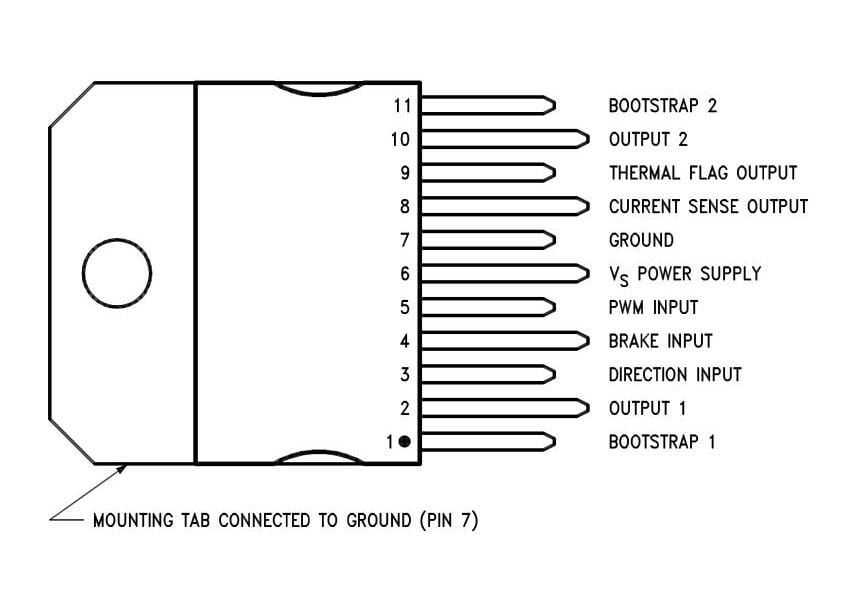

| Number of Pins |
11 |
| Package Type |
To-220-11 |
