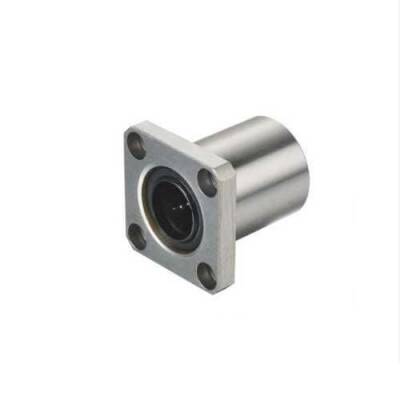

LMEK8UU 8mm Linear Bearing
LMEK8UU 8mm Linear Bearing. Square flange bearing that you can use in 3D printer or CNC projects.
Dimensions:

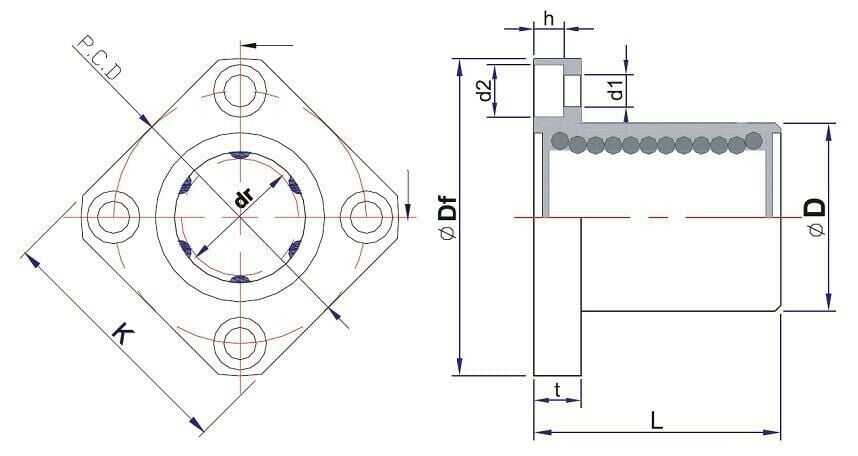

3. By looking at the letters in the image, you can see which part all the measurements correspond to below.
- dr: 8mm
- D: 15mm
- L: 24mm
- Df: 32mm
- K: 25mm
- t: 5mm
- PCD: 24mm
- d1: 3.5mm
- d2: 6mm
- h: 3.1mm
