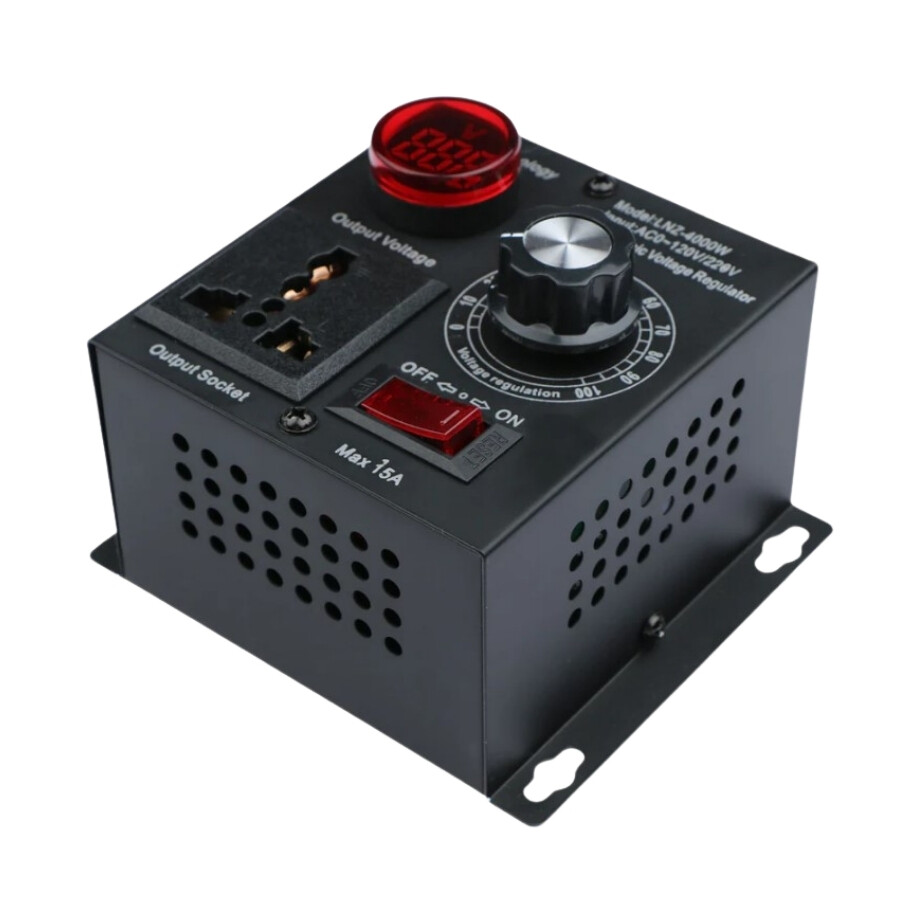

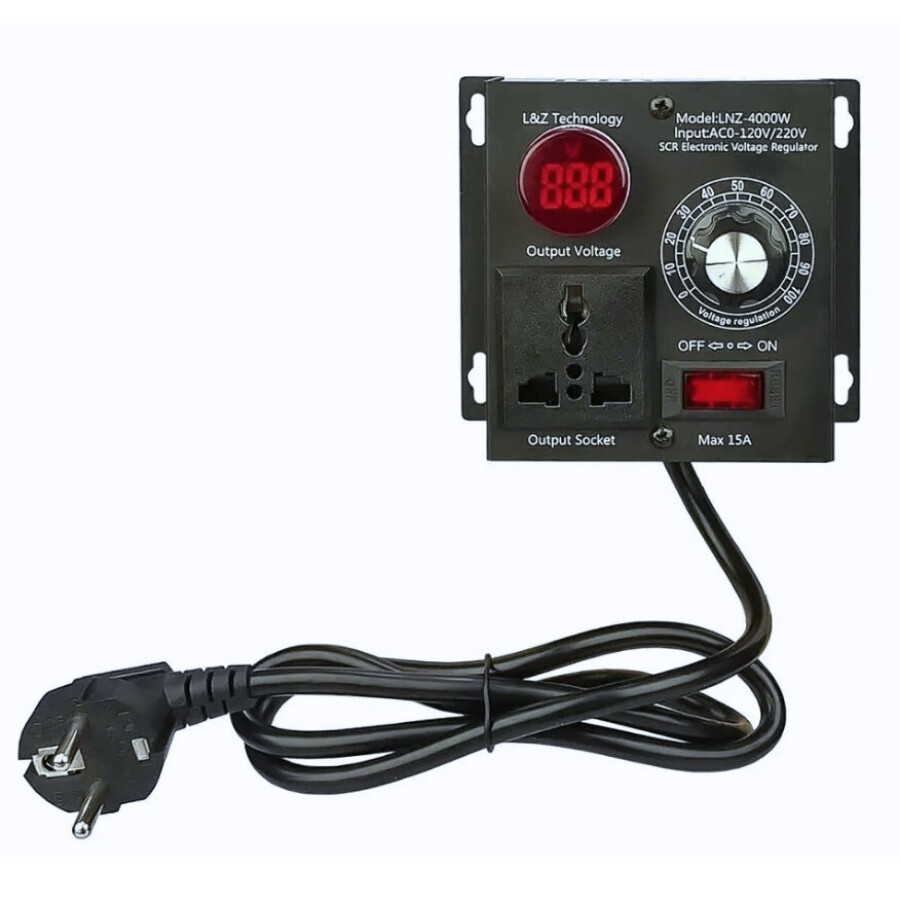

LNZ-4000W AC 220V 4000W Motor Speed ​​Control Module

LNZ-4000W AC 220V 4000W Motor Speed ​​Control Module

LNZ-4000W AC 220V 4000W Motor Speed ​​Control Module is a motor speed control module that can be used to control 220V devices. It can be used as a light dimmer, fan speed controller, stove temperature controller. It is easy and simple to use and can control devices up to 4000W.

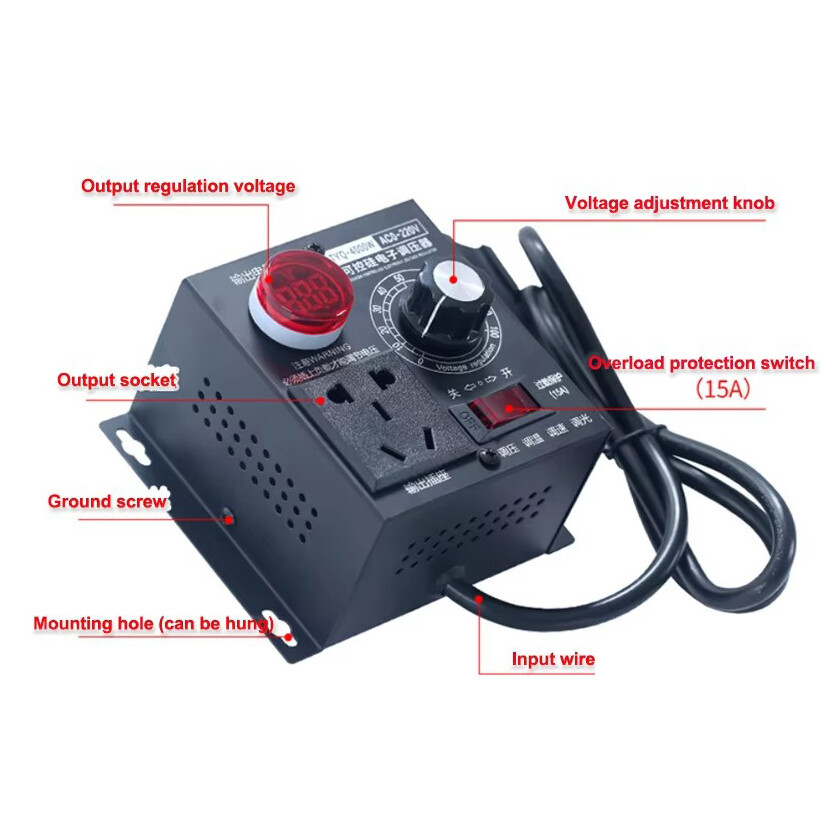

Input AC and connect the device to the output of the module, then use the onboard potentiometer knob to adjust the required power output from your 220V Device.

Technical Specifications

• Product model: LNZ-4000W
• Input voltage: AC220V
• Output voltage: AC0-220V (adjustable)
• Maximum power: 4000W
• Maximum current: 15A (load current 9A)
• Product size: 114x100x80mm

Usage

Dimension
