LP-12-J02SX-02-401 2-Pin Waterproof Connector - Female

Ratings & Reviews (0)
Comment
Brand: CNLINKO
Product Code: KOM.KNN.05.000045
Stokta 10+ ürün
95.04 TL + VAT
VAT Included: 114.05 TL

LP-12-J02SX-02-401 2-Pin Waterproof Connector - Female


It is a 2-pin female connector for power applications. Compatible with 18 AWG cable. The LP series is one of the best-selling series waterproof connectors made of high-performance plastics. Quick-plug plug design allows one-handed plugging/unplugging. The connection pins adopt gold plating technology, which can resist corrosion and is suitable for high-low temperatures. LP-12 series connectors are widely used in various harsh environments and situations such as audio-visual equipment, medical equipment, industrial control, inspection and measurement due to their small size, flexible operation and automatic plugging and unplugging. With compact components, simple operation, fast and stable connection, IP67-rated outdoor waterproof performance, it meets the environmental protection requirements of international industrial equipment.


Technical Specifications

  • Gold-plated contacts for increased corrosion protection
  • PBT shell
  • High temperature and pressure resistance
  • IP65/67 rating when connected
  • Number of Pins: 2
  • Pin Diameter - 1.5 mm
  • Cable Connection - 18 AWG
  • Rated Current - 5 Amperes
  • Operating Voltage - 250V AC
  • Contact Resistance - <5 mOhm
  • Withstand Voltage - 1500V
  • Insulation Resistance- > 500MOhm
  • Ingress Protection - IP65/67
  • Operating Temperature - -40 C - 80 C
  • Body Material - High Performance Plastic
  • Contact Material - Gold Plated Copper Alloy
  • Flammability Rating- UL94-V0

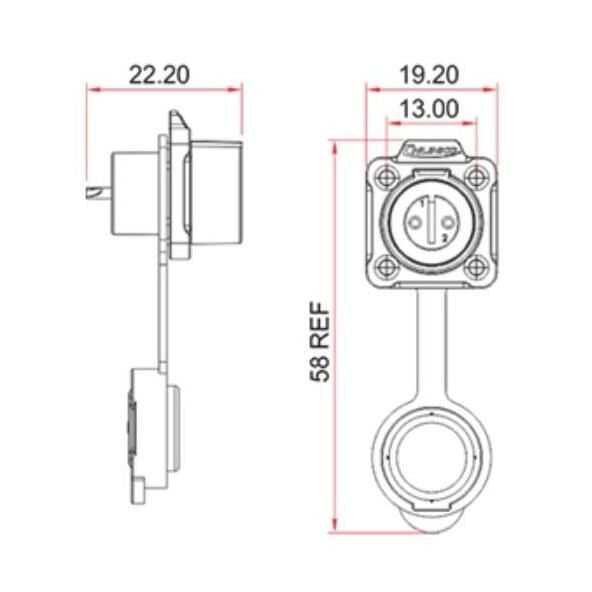

    LP-12 Waterproof Connector Datasheet

Weight(Kg)
0.05
Features
Connector Pin
2-Pin
