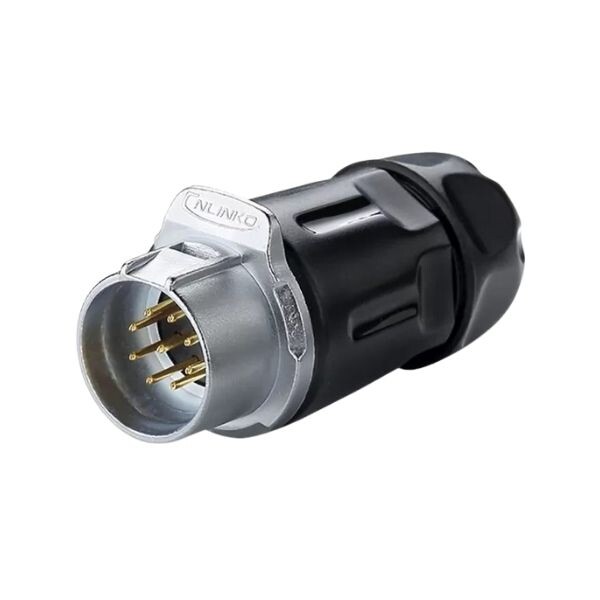

LP-20-C09PP-01-001 9-Pin Waterproof Connector - Male
It is a 9-pin male connector for power applications. It is compatible with 24-26 AWG cable. LP series is one of the best-selling series waterproof connectors made of high-performance plastics. The quick plug-in design allows for one-handed plugging/unplugging. The connecting pins adopt gold-plated technology, which can resist corrosion and is suitable for high and low temperatures. LP-20 series connectors are widely used in various harsh environments and situations such as audiovisual equipment, medical equipment, industrial control, inspection and measurement due to their small size, flexible operation and automatic plugging and unplugging. Compact components, simple operation, fast and stable connection, IP67 grade outdoor waterproof performance, meet the environmental protection requirements of international industrial equipment.
CNLINKO products can be produced with cables upon request. Special production is valid for bulk purchases. For special requests, you can send an e-mail to info@motorobit.com.
Technical Specifications
-
Gold plated contacts for increased corrosion protection
-
PBT shell
-
High temperature and pressure resistance
-
IP65/67 rating when connected
-
Number of Pins: 9
- Pin Diameter - 1 mm
-
Cable Connection - 24-26 AWG
-
Rated Current - 5 Ampere
-
Operating Voltage - 400V AC
-
Contact Resistance - <5mOhm
-
Withstand Voltage - 1500V
-
Ingress Protection - IP65/67
-
Operating Temperature - -40 C - 80 C
-
Body Material - High Performance Plastic
-
Contact Material - Gold Plated Copper Alloy
-
Flammability Rating- UL94-V0

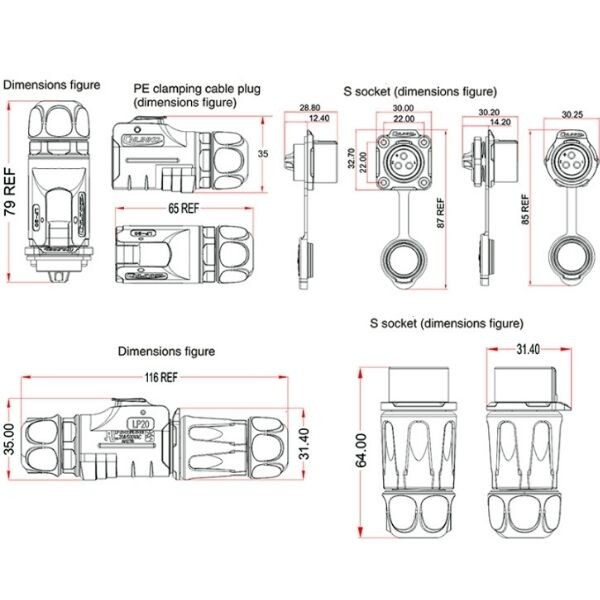

LP-20 Waterproof Connector Datasheet
