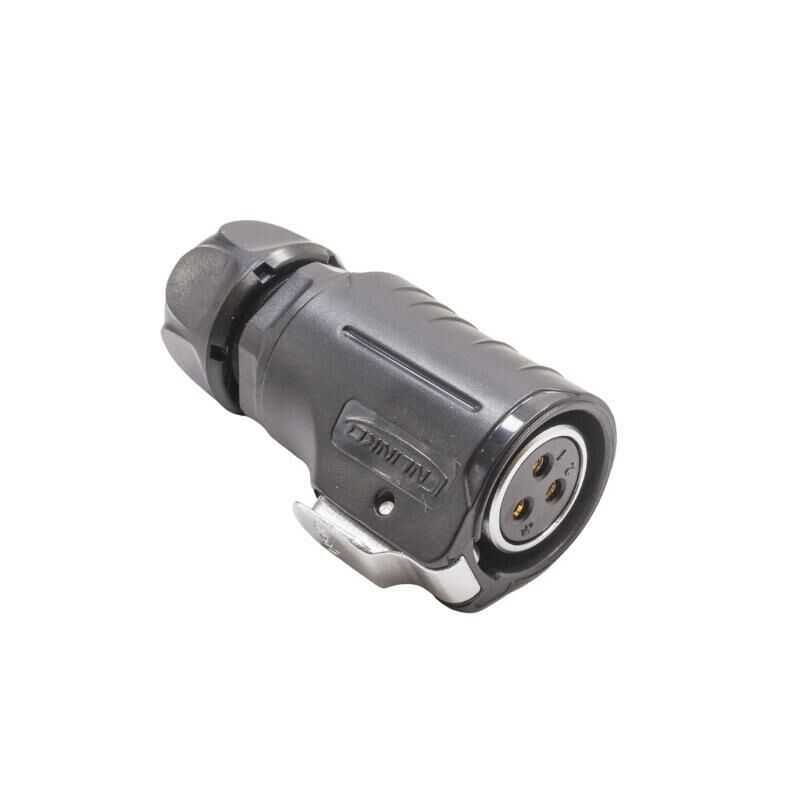

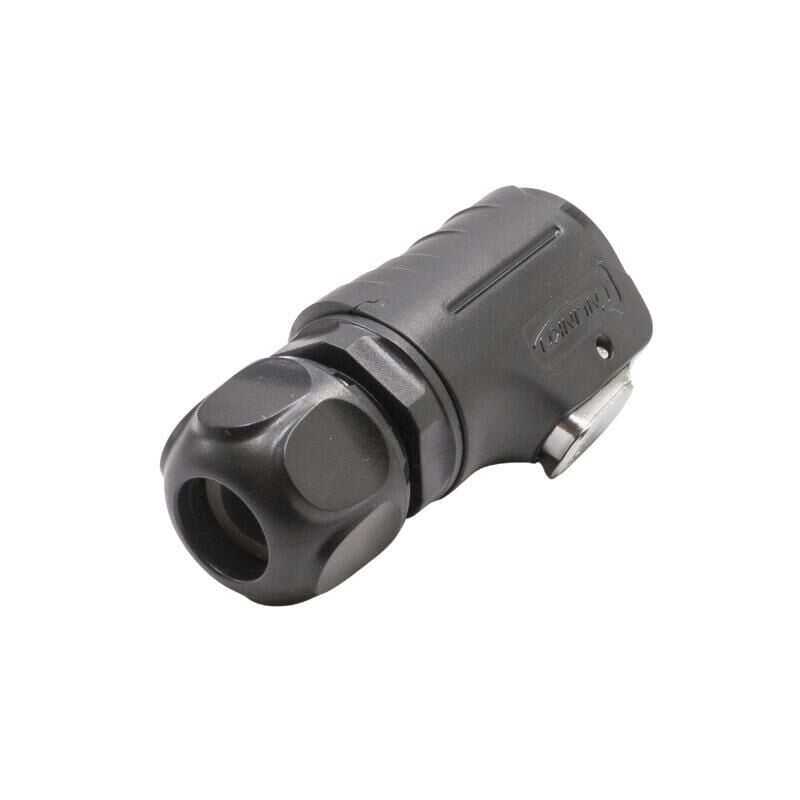

LP-20-J03PE-01-002 IP67 500V 20A Female Connector

Cnlinko LP-20- J03PE-01-002 is a 3 pin female connector for power applications. 14-12 AWG  Suitable for use with cable. Rated for 500V and 20 A. It locks into the corresponding male cable plug and can be easily released. Perfect for applications such as audio/visual equipment, medical devices, test and measurement equipment and industrial control.

IP65/67 when connected class

Dimensions - 67 mm Length x 31.4 mm Diameter

Number of Pins - 3

Cable Gauge - 14-12 AWG
Diameter Range - 8-12mm
Contact Diameter - 2.7mm

Rated Current - 20A

Operating Voltage - 500V

Contact Resistance - <1mOhm

Operating Temperature - -40 C - 80 C

Case Material - High Performance Plastic

Flammability Rating - UL94-V0

Wiring Mode - Soldering
