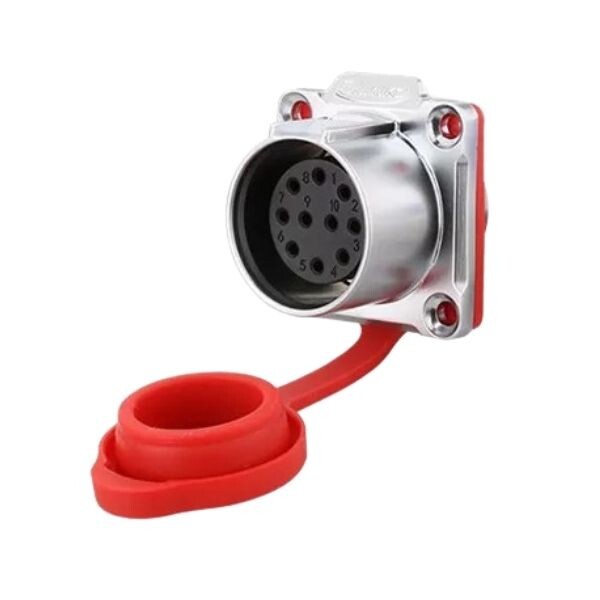

LP-24-J10SX-03-401 10-Pin Waterproof Connector - Female
10-pin female connector for power applications. Compatible with 16-18 AWG wire. Snap-on design for a reliable connection. Built to withstand the demands of industrial applications.
LP series is one of the best-selling waterproof connector series made of high-performance engineering plastics. Quick plug design allows for one-handed plug/unplugging. Gold plating technology is corrosion resistant and suitable for high and low temperatures. LP-24 series connectors are widely used in various harsh environments and situations such as audiovisual equipment, medical equipment, industrial control, inspection and measurement due to their small size, flexible operation and automatic plugging and unplugging. Compact components, simple operation, fast and stable connection, IP67 rated outdoor waterproof performance.
CNLINKO products can be produced with cables upon request. Special production is valid for bulk purchases. For special requests, you can send an e-mail to info@motorobit.com.
Technical Specifications
- Gold-plated contacts for increased corrosion protection
- PBT shell
- High temperature and pressure resistance
- IP65/67 rating when connected
-
Number of Pins: 10
-
Cable Size: 18-16 AWG
-
Diameter Range: 9-14mm
-
Contact Diameter: 1.5mm
-
Rated Current: 10A
-
Working Voltage: 500V
-
Contact Resistance: <1mOhm
-
Withstanding Voltage: 2500V
-
Insulation Resistance: > 500MOhm
-
Operating Temperature: -40 C to 80 C (-40 F to 176 F)
-
Housing Material: High Performance Plastic
-
Hardware: Zinc Alloy
-
Contact Material: Gold-Plated Copper Alloy
-
Flammability Rating: UL94-V0
-
Approvals: UL, CE, CCC, RoHS, ISO9001
