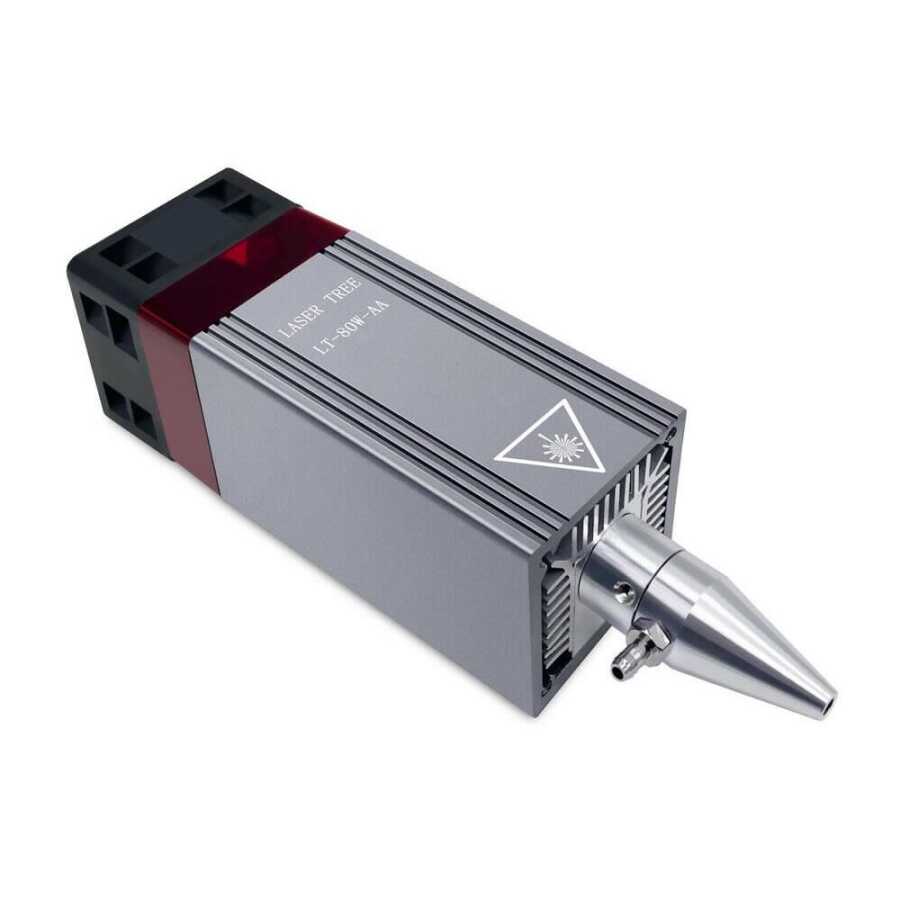

LT-80W 12V TTL Burning CNC Laser Module Set
LT-80W is a burning laser set with 80W power that works with 12V. It can engrave and mark metal surfaces, wood and plywood. It can cut plywood up to 8-10mm.
It is an ideal product for those who want to build their own CNC laser cutting machine. Since it is a very powerful laser, it can cut and process most materials. A 12V, minimum 3A adapter is required to power the product. There is no adapter included in the product.
The laser head comes with a specially designed air support nozzle. When cutting with this laser head, the air support system will blow air from the air nozzle. This will give you an excellent cutting experience and greatly reduce burn marks. Air pump recommendation: Air pressure and capacity: ≥0.027kPa, 27L/min
Specifications:
- Output power: 80W
- Optical Power: 10W
- Wavelength: 450nm (± 10nm)
- Laser color: blue
- Focal length: 45mm
- Dot form: fixed focus
- Electric power: 12V 3.2A(3A-3.5A)
- PWM modulation: 0/5-12V 0-5kHz TTL /PWM
- Input port: XH2.54-3P socket

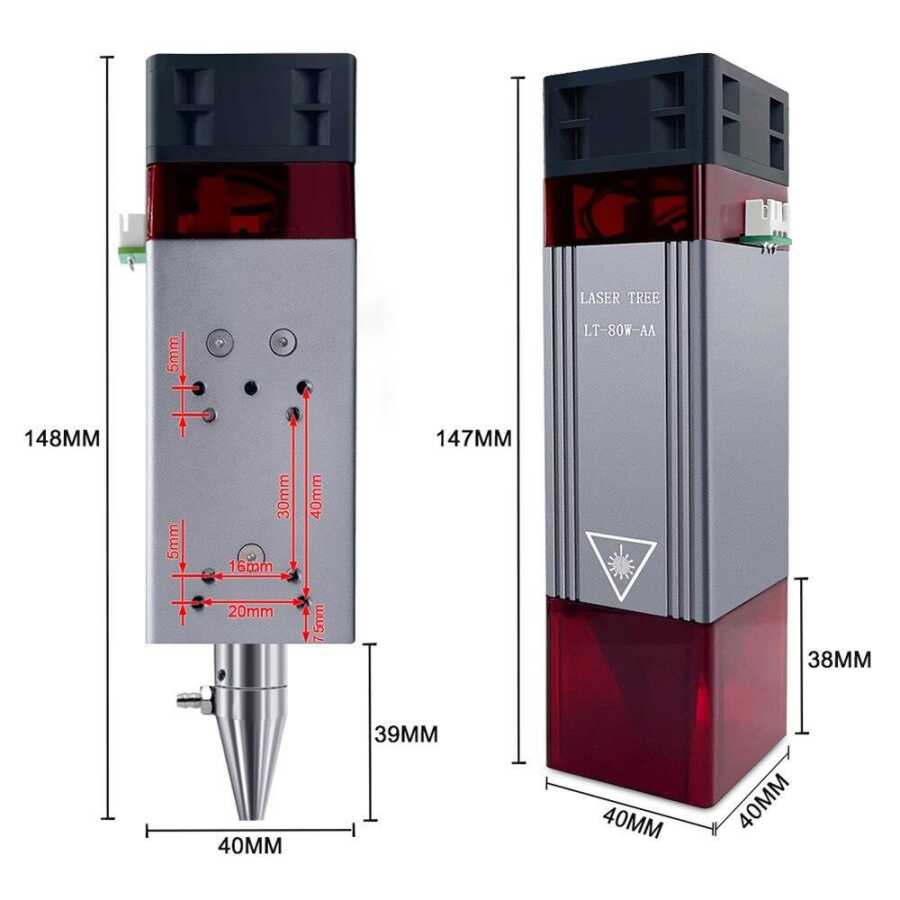

- Product size: 40*40*147mm
- Laser module net weight: 250g
- Materials that can be engraved;
- MDF, leather, plywood, ceramics, bone, stone, bamboo, wood, etc.
- Materials that can be cut;< ul>
- 8-10mm Plywood
- 5-6mm Leather
- 4-5mm MDF
- 8-10mm Wood
- 4 -5mm Black Acrylic

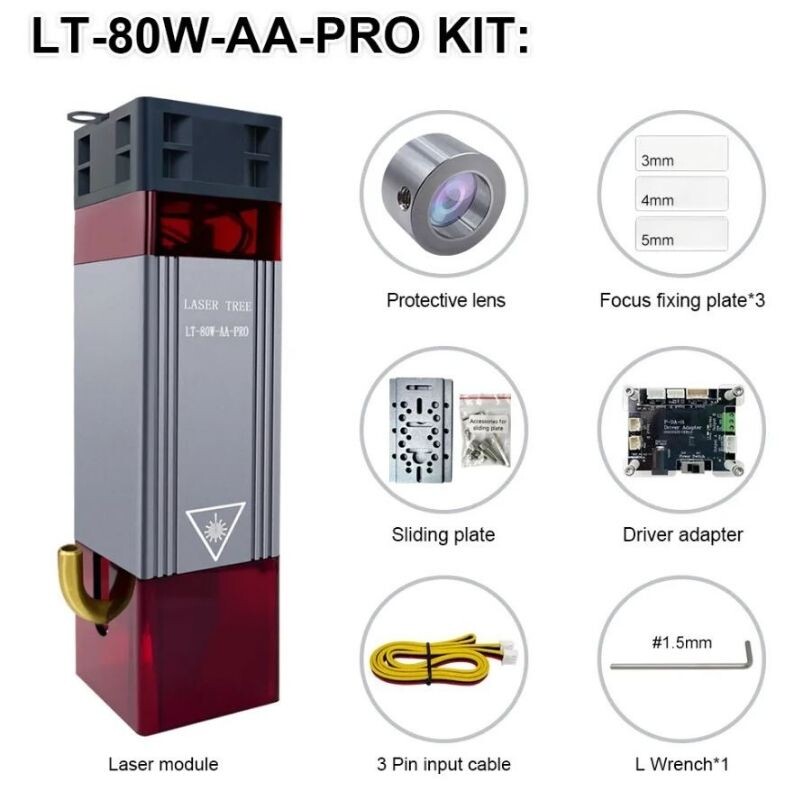

Product Content
- LT-80W Laser
- Protective Lens
- 3-4-5mm focus corrector transparent plate
- Sliding Plate
- Drive Adapter
- Hexagon
- 3 Pin Supply Cable
