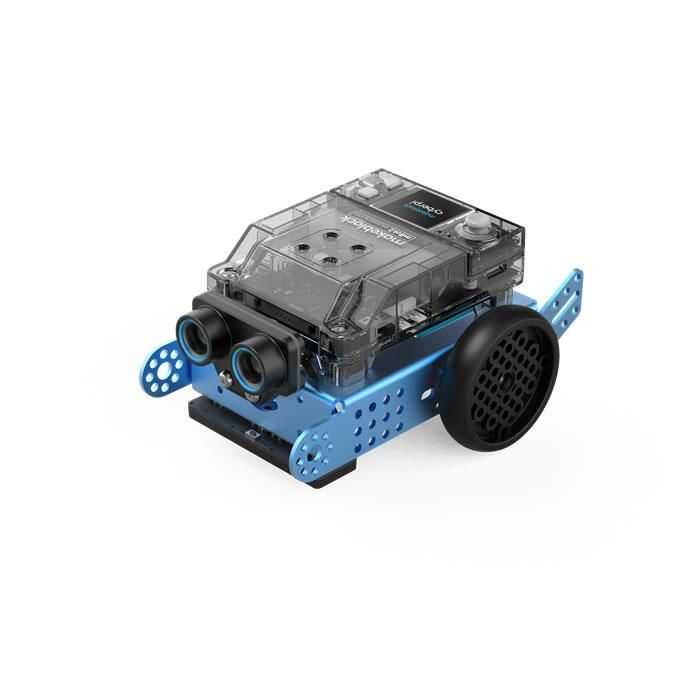

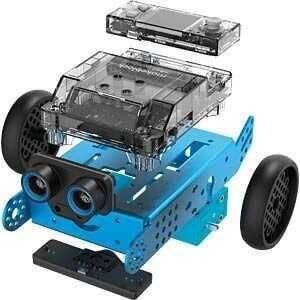

MakeBlock mBot2 Educational Robot

mBot2 is a next-generation educational robot designed with expanded capabilities that begins as an entry-level solution in middle school education and extends to high school and beyond.

mBot 2 is powered by CyberPi, an educational microcontroller enhanced with networking capabilities, built-in sensors and much more. mBot2 is designed for students to conduct interactive and intelligent lessons that are engaging, fun and reflect real-world applications with the latest technologies including robotics, AI, IoT and Data Science. With mBlock's advanced coding learning experience, mBot2 allows students and educators to start with a block-based coding approach and seamlessly transition to object-oriented coding with Python, all in the same environment.

Features	mBot 1.1	mBot2
Control Card	mCore	CyberPi
Processor	ATmage328 / P	ESP32-WROVER-B
SPI Flash memory	/	8MB
Storing multiple programs at the same time	/	8
Supporting multi-threading	/	yes
Wireless Communication	Either Bluetooth or 2.4G (depends on the version) IR	Bluetooth, Wi-Fi and Wi-Fi LAN
Inputs and onboard sensors	Button Reset button Light sensor	5-way joystick Button x2 Reset button Light sensor Microphone Gyroscope- accelerometer
Outputs	Buzzer RGB LED x2	1.44″ full color display Speaker RGB LED x5
Extensible electronic modules	RJ25 ports x4, one component per port	mBuild port x1, connect 10+ components in series
Additional interfaces	/	2-pin interface x2 3-pin interface x4
