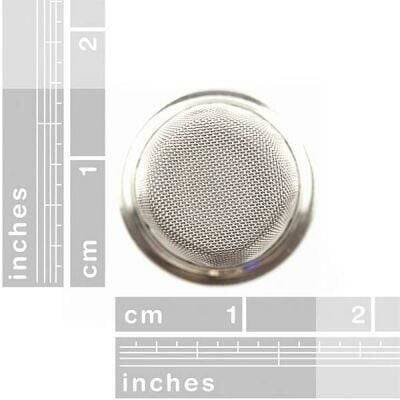

MQ-4 sensor is a gas sensor that can detect methane gas (CNG) natural gas leakage in the environment. It gives an analog output according to the gas density in the environment. Gas detection range is 300 – 10000 ppm.
There are A,B,H pins on the sensor. The sensor can be operated by applying the connection diagram below. Sensitivity can be changed by changing the connected resistor value.
Connection Diagram:
Features:
Operating Temperature: -10°-50°C
Operating Voltage: 5V
Current Drawn: 150 mA
